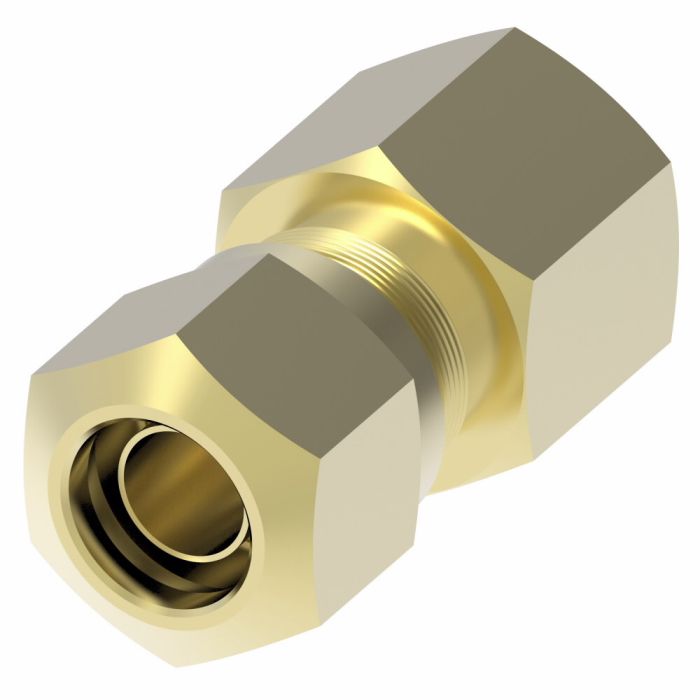

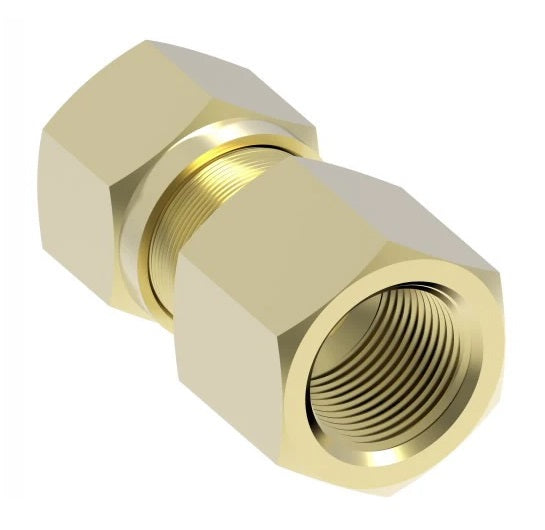

Danfoss 1466X8 Air Brake Adapter for Nylon Tubing 1/2 inches Tube OD x 3/8 inches Female Pipe

Product Description

The Danfoss 1466X8 is an air brake adapter for nylon tubing. This adapter features easy assembly with no tube preparation or flaring required and built-in tube support. It can be used with copper tubing by replacing the nut, sleeve, and insert. Constructed from CA360 brass, it withstands a maximum operating pressure of 150 psi and temperatures from -40°F to +200°F.

• Easy to assemble (no tube preparation or flaring required.)
• Built in tube support.
• May be used with copper tubing by replacing nut, sleeve and insert with long nut and spherical sleeve.

Product Highlights

Air brake adapter made from CA360 brass with a maximum operating pressure of 150 psi.

Product Information

Standard Information

• Brand: DANFOSS
• Manufacturer Part Number: 1466X8

Technical Specifications

• MPN: 1466X8
• Brand: DANFOSS
• Material(s): Brass
• Application: Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.
• End Size 1: 0.38
• End Size 2: 0.69
• End Type 1: UNF
• End Type 2: Line/Hose/Tube
• Item Type: UNF Female to Hose/Pipe/Tube Female
• Minimum Working Temperature: -40
• Product Material: Brass
• Product Width: 0.88
• Supplier Part Number: 1466X8
