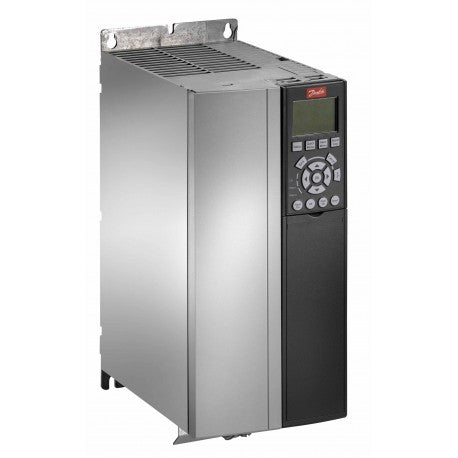

Danfoss 134G4470 VLT Refrigeration Drive FC-103 11 kW (B3) FC-103P11KT4E20H2XGXXXXSXXXXAXB0CXXXXDX

Product Description

The Danfoss 134G4470 is a VLT Refrigeration Drive FC-103 frequency converter rated 11 kW (15 HP) for three-phase mains (380 - 480 VAC). It uses an E20 chassis (IP20) enclosure, RFI filter class A2 and a graphical local control panel. The unit includes MCB-109 I/O with RTC back-up (B0 option), has no brake chopper, a not coated PCB and provides continuous current of 24 A (intermittent 26.4 A) for controlling compressors, pumps and fans.

• Power: 11 kW / 15 HP; three-phase operation 380 - 480 VAC
• E20 chassis (IP20) with RFI filter Class A2 and graphical LCP
• MCB-109 I/O with RTC back-up (B0); continuous current 24 A, intermittent 26.4 A; no brake chopper

Product Highlights

11 kW VLT refrigeration drive for compressors, pumps and fans; IP20 chassis; RFI filter A2; MCB-109 I/O with RTC backup

Product Information

Standard Information

• Brand: DANFOSS
• Manufacturer Part Number: 134G4470

Technical Specifications

• Brand: Danfoss
• MPN: 134G4470
• Model Code: FC-103P11KT4E20H2XGXXXXSXXXXAXB0CXXXXDX
• Product Type: Frequency converter (VLT Refrigeration Drive FC-103)
• Series: 103
• Power Rating: 11 kW
• Horsepower: 15 HP
• Phase: Three phase
• Input Voltage: 380 - 480 VAC
• Enclosure: E20 (IP20) chassis
• Enclosure Rating: IP20
• RFI Filter: Class A2
• Brake Chopper: No
• Local Control Panel: Graphical LCP
• PCB Coating: Not coated
• MCB Option: MCB-109 I/O with RTC back-up (B0)
• Frame Size: B3
• kVA: 16.6
• Power Loss: 278 W
• Continuous Current: 24 A
• Intermittent Current: 26.4 A
• Height: 399 mm (15.71 in)
• Width: 165 mm (6.50 in)
• Width with two C options: 225 mm (8.86 in)
• Depth: 249 mm (9.80 in)
• Depth with Option A/B: 262 mm (10.31 in)
• Gross Weight: 11.19 kg (24.67 lb)
• Net Weight: 10.17 kg (22.42 lb)
• Software Release: Latest standard software
• EAN/GTIN: 5710107547913
• ECCN EU: Y901
• ECCN US: 3A999.a
