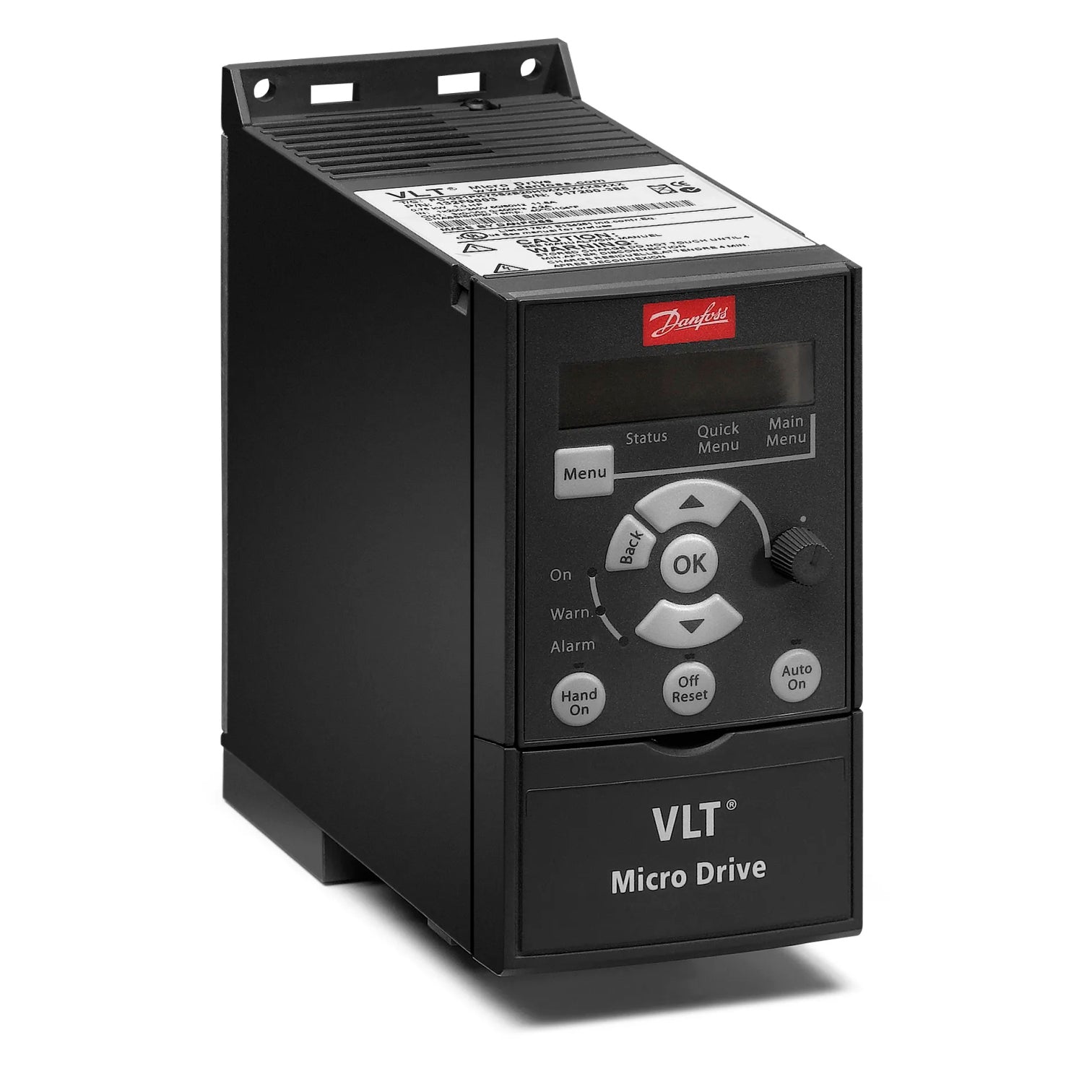

Danfoss 132F0014 Frequency Converter FC-051P2K2T2E20H3BXCXXXSXXX 2.2 KW / 3.0 HP

Product Description

The Danfoss 132F0014 Frequency Converter FC-051P2K2T2E20H3BXCXXXSXXX is a general-purpose drive for controlling AC motors up to 22.0 kW. It is designed for various applications with a compact build. This micro drive operates on a three-phase 200 to 240 VAC power supply and features an IP20 chassis enclosure.

• General-purpose drive
• Controls AC motors up to 22.0 kW
• Compact design

Product Highlights

This frequency converter is suitable for diverse industrial uses and provides an efficient solution for controlling AC motors.

Product Information

Standard Information

• Model code: FC-051P2K2T2E20H3BXCXXXSXXX
• Product Group: FC-VLT Micro Drive FC

Technical Specifications

• Micro Drive Series: 51
• Power Rating: P2K2 (2.2 KW / 3.0 HP)
• Phase: T (Three phase)
• Mains Voltage: 200 - 240 VAC
• Enclosure: E20 (IP20 / Chassis)
• RFI Filter: H3 (RFI Class A1/B (C1))
• Brake - Safe Stop: B (Brake chopper)
• LCP: X (No Loc. Cont. Panel)
