Danfoss 132F0003 VLT Micro Drive FC-51 0.75 kW / 1.0 HP (PK75)

Product Description

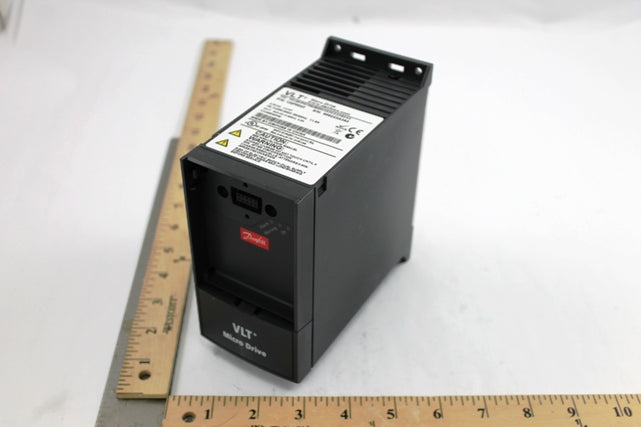

Danfoss 132F0003 is a VLT Micro Drive FC-51 frequency converter rated 0.75 kW / 1.0 HP for single-phase 200–240 VAC systems. This FC-051PK75S2E20H3XXCXXXSXXX configuration features an IP20 chassis enclosure, H3 RFI filter (RFI Class A1/B (C1)), coated PCB, no brake chopper, and no local control panel. It is intended for controlling AC motors in pump, fan, and blower applications.

• Power: 0.75 kW / 1.0 HP, single-phase input 200–240 VAC (M1 frame)
• Enclosure and protection: IP20 chassis (E20), coated PCB, H3 RFI filter (A1/B (C1)), electronic thermal motor protection
• I/O and outputs: multiple programmable I/O (2 analog inputs, 1 analog output, 5 digital inputs, 1 pulse input, 1 thermistor input, 1 relay) and 4.2 A output

Product Highlights

Compact single-phase VFD (FC-51) 0.75 kW with IP20 chassis, RFI filter H3, coated PCB, and exchange-unit classification.

Product Information

Standard Information

• Brand: DANFOSS
• Manufacturer Part Number: 132F0003

Technical Specifications

• Manufacturer: Danfoss
• MPN: 132F0003
• Model Code: FC-051PK75S2E20H3XXCXXXSXXX
• Product Type: Frequency converter / VLT Micro Drive FC-51
• Power Rating: 0.75 kW / 1.0 HP (PK75)
• Phase: Single phase
• Input Voltage: 200 - 240 VAC
• Supply Voltage Note: 200-240 V ±10%
• Output Current: 4.2 A
• Enclosure: IP20 / Chassis (E20)
• Mounting Type: Chassis (M1 frame)
• RFI Filter: H3 (RFI Class A1/B (C1))
• Brake Chopper: No
• Local Control Panel: Not included (sold separately)
• Coated PCB: Yes
• I/O: 2 analog inputs, 1 analog output, 5 digital inputs, 1 pulse input, 1 thermistor input, 1 relay (240 VAC, 2 A)
• Protection Features: Electronic thermal motor protection; heat sink temperature monitoring
• Frame Size: M1
• Dimensions (H x W x D): 5.90 in x 2.76 in x 5.82 in
• Gross Weight: 1.51 Kilogram
• Net Weight: 1.1 Kilogram
• Applications: Pump, fan, blower, general-purpose AC motor control
• Fieldbus Communication: RS485 FC-bus / Modbus RTU
• Software Release: SXXX (standard/latest software)
• DrivePro Category: EXCH (Exchange Unit)
• ECCN EU: Y901
• ECCN US: 3A999.a
• EAN / GTIN: 5702427357464
• Compliance: RoHS compliant
