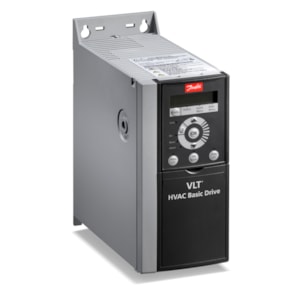

DANFOSS 131L9864 VLT HVAC Basic Drive FC 101 2.2 KW 3.0 HP

Product Description

The DANFOSS VLT HVAC Basic Drive FC 101 is a three-phase drive ideal for HVAC applications. The MPN for this drive is 131L9864. It operates within an input voltage range of three hundred eighty to four hundred eighty VAC and has a power rating of two point two kilowatts or three horsepower.

• Three-phase operation at 380-480 VAC
• Power rating of 2.2 KW or 3.0 HP
• IP20 / Chassis enclosure with RFI Class A1 (C2) filter

Product Highlights

This drive is designed for robust HVAC applications, ensuring reliable performance in various environments. It features a coated PCB, enhancing its durability. The unit does not include a brake chopper or local control panel, which makes it suitable for specific system setups.

Product Information

Standard Information

• Product Group: FC-VLT HVAC Drive FC-
• Series: 101

Technical Specifications

• Power Rating: 2.2 KW / 3.0 HP
• Phase: Three phase
• Input Voltage: 380-480 VAC
• Enclosure: IP20 / Chassis
• RFI Filter: RFI class A1 (C2)
• Brake - Safe Stop: No brake chopper
• LCP: No local control panel
• Coating PCB: Coated PCB
• Mains Option: No Mains Option
• Adaptation A: Standard Cable Entries
• Software Release: Latest release std. SW.
• Software Language Pack: Standard Language Pack
• Frame Size: H2
• Typecode Part 1: FC-101P2K2T4E20H4XXC
• Typecode Part 2: XXXSXXXXAXBXCXXXXDX
• ECCN EU: Y901
• ECCN US: 3A999.a
