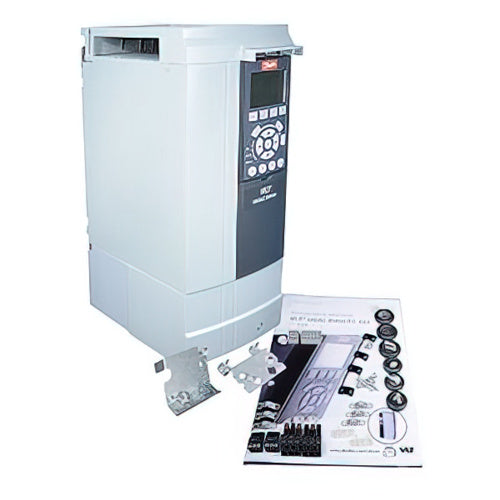

Danfoss 131F0670 VLT® HVAC Drive FC 102 5.5 KW / 7.5 HP

Product Description

The Danfoss VLT® HVAC Drive FC-102, MPN 131F0670, is designed for ventilation, heating, and refrigeration applications. It offers a wide array of standard and optional features, aiming for the lowest overall ownership cost. The drive has a three phase, 380 - 480 VAC input voltage, and an IP21 / Type 1 enclosure.

• Dedicated to ventilation, heating, and refrigeration applications.
• Provides the lowest overall cost of ownership.
• Graphical Loc. Cont. Panel

Product Highlights

The Danfoss VLT® HVAC Drive FC-102 is ideal for HVAC applications, offering efficient and cost-effective operation.

Product Information

Standard Information

• Brand: DANFOSS
• Manufacturer Part Number: 131F0670

Technical Specifications

• Model code: FC-102P5K5T4E21H2XGXXXXSXXXXAXBXCXXXXDX
• Product Group: FC- VLT® HVAC Drive FC-
• Series: 102
• Power Rating: 5.5 KW / 7.5 HP
• Phase: Three phase
• Input Voltage: 380 - 480 VAC
• Enclosure: IP21 / Type 1
• RFI Filter: RFI Filter
• Brake - Safe Stop: No brake chopper
• LCP: Graphical Loc. Cont. Panel
• Coating PCB: Not coated PCB
• Mains Option: No Mains Option
• Adaptation A: Standard Cable Entries
• Adaptation B: No adaptation
• Software Release: Latest release std. SW.
• Software Language Pack: Standard Language Pack
• A Option: No A Option
• B Option: No B Option
• C0 Option MCO: No C0 option
• C1 Option: No C1 option
• C Option Software: No software option
• D Option: No D option
• Frame Size: A3
• Power 110% (NO) [KW]: 5.5
• kVA: 9.01
• Power Loss NO [W]: 187
• Continuous Current (NO) [A]: 13
• Intermittent Current (NO) [A]: 14.3
• ECCN EU: Y901
• ECCN US: 3A999.a
• Vendor: ERR01
• Recommended Factory: ERR01
• Modelcode01: FC-102P5K5T4E21H2XGX
• Modelcode02: XXXSXXXXAXBXCXXXXDX
• Recommended Plant: ERR01
• Vendor Name: Danfoss
• URI Part Number: 131F0670
• Vendor Part Number: 131F0670
