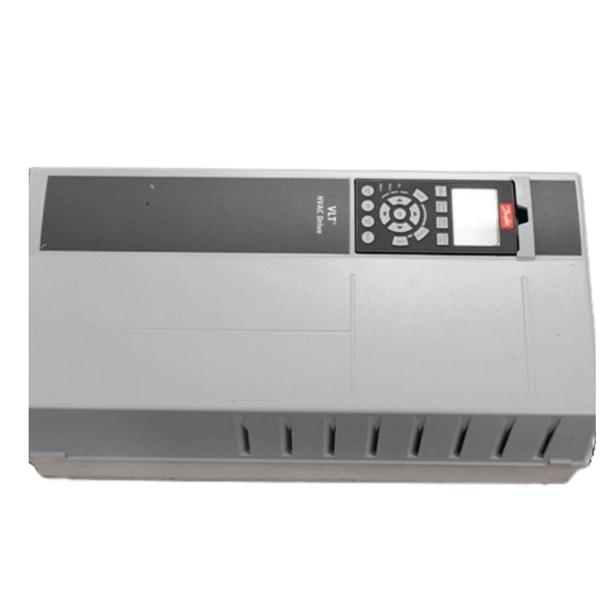

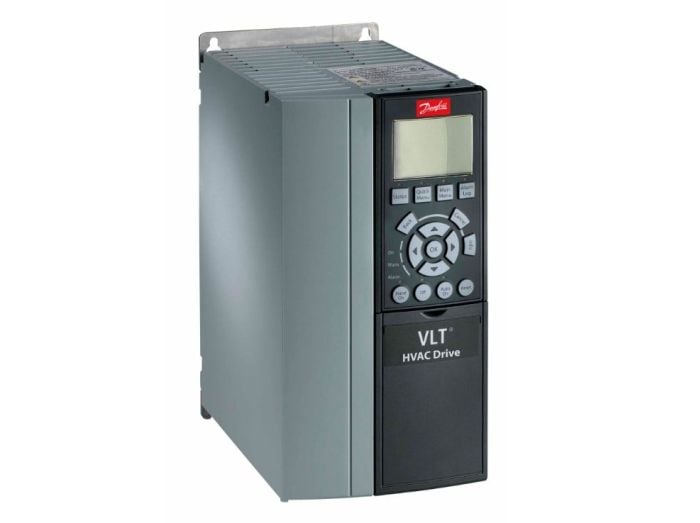

Danfoss 131F0426 Frequency Converter FC-102P11KT4E20H2XGXXXXSXXXXAXBXCXXXXDX 11 kW / 15 HP

Product Description

The Danfoss 131F0426 Frequency Converter FC-102P11KT4E20H2XGXXXXSXXXXAXBXCXXXXDX is dedicated to ventilation, heating, and refrigeration applications. This VLT HVAC drive features a wide range of powerful standard and optional features, providing a cost-effective solution for modern buildings. It is designed for use with pumps, fans, and compressors to save energy and reduce costs.

• Dedicated to ventilation, heating, and refrigeration applications.
• Wide range of powerful standard and optional features.
• Provides the lowest overall cost of ownership.

Product Highlights

This Danfoss VLT HVAC drive offers optimized process control for heating, ventilation, and air conditioning applications. Easy to use with built-in intelligence.

Product Information

Standard Information

• Brand: DANFOSS
• Manufacturer Part Number: 131F0426

Technical Specifications

• Model code: FC-102P11KT4E20H2XGXXXXSXXXXAXBXCXXXXDX
• Product Group: FC-
• Series: 102
• Power Rating: 11 KW / 15 HP
• Phase: Three phase
• Mains Voltage: 380 - 480 VAC
• Enclosure: IP20 / Chassis
• RFI Filter: H2 RFI Filter
• Brake - Safe Stop: No brake chopper
• LCP: Graphical Loc. Cont. Panel
• Coating PCB: Not coated PCB
• Mains Option: No Mains Option
• Adaptation A: Standard Cable Entries
• Adaptation B: No adaptation
• Software Release: Latest release std. SW.
• Software Language Pack: Standard Language Pack
• A Option: No A Option
• B Option: No B Option
• C0 Option MCO: No C0 option
• C1 Option: No C1 option
• C Option Software: No software option
• D Option: No D option
• Frame Size: B3
• Typecode Part 1: FC-102P11KT4E20H2XGX
• Typecode Part 2: XXXSXXXXAXBXCXXXXDX
• Height [mm]: 399,0
• Width w/ no C options [mm]: 165,0
• Width w/ two C options [mm]: 225,0
• Depth [mm]: 249,0
• Depth with Option A/B [mm]: 262,0
• kVA: 16.6
• Power Loss NO [W]: 278
• Continuous Current (NO) [A]: 21
• Intermittent Current (NO) [A]: 23.1
• Manufacturer Part Number: 131F0426
• Manufacturer: Danfoss Electronics
• Product Series: VLT FC102
• Family Series: Danfoss Electronics HVAC Drives, VLT FC102 Series
• Description: HVAC Drive, 460V, 15 HP, Chassis Only, FC-102P11KT4E20H2XGXXXXSXXXXAXBXCXXX
• Nominal Input Voltage: 480 VAC
• Amps (Variable Torque Rating): 23.1 A
• Amps (Constant Torque Rating): 21 A
• AC Voltage: 380-480 VAC
• Brake: None
• AC Line Regenerative: No
• Operator Controls: Keypad Included
• IP Rating: IP20
• Mounting: Panel
• HP (Constant Torque Rating): 15 hp
• Height: 14.8 "
• Width: 5.8 "
• Depth: 8.8 "
• Rated Power (KW/HP): 11
• Current (Amps): 24
• Voltage: 400
• Phase Output: Three
• Brand/ Manufacturer: Danfoss
• product type: AC Inverter Drive
• power rating: 11 kW
• supply voltage: 380 to 480 V ac
• current rating: 24 A
• output frequency: 50/60 Hz
• ambient temperature: +45 °C
• Part #: 131F0426
