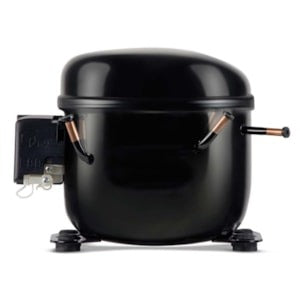

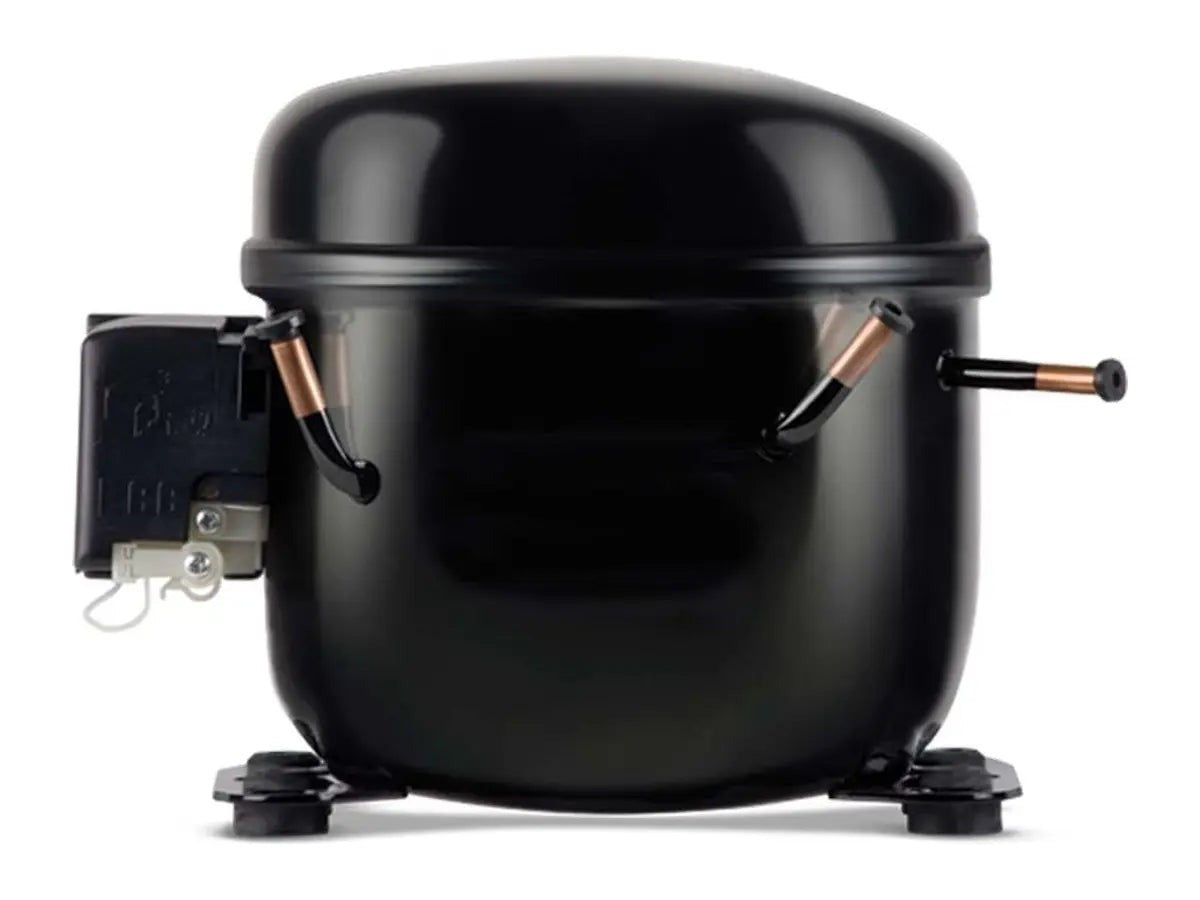

Danfoss 123B3524 Reciprocating Compressor NLY90RRa 115/1/60 (Single Pack) 123F3524

Product Description

Danfoss 123B3524 is a reciprocating hermetic compressor NLY90RRa designed for light commercial refrigeration, operating on 115/1/60 V and optimized for R290 refrigerant. The fixed-speed single-phase unit features a CSIR motor running at 3600 rpm, POE oil charge of 400 cm3, and a compact total height of 205 mm. It includes copper suction, discharge, and process connections with rubber plugs and CE approval.

• Electrical: 115 V / 1 phase / 60 Hz (network 115-127 V / 1 ph / 60 Hz); motor type CSIR, rotational speed 3600 rpm
• Refrigerant and oil: Compatible with R290; POE oil, oil quantity 400 cm3; maximum refrigerant charge 0.15 kg
• Mechanical connections and size: Total height 205 mm; suction/discharge/process copper connections (suction Ø 6.5 mm, discharge Ø 4.9 mm, process Ø 6.5 mm) with rubber plugs

Product Highlights

Fixed-speed single-phase R290 hermetic reciprocating compressor for medium/high back pressure refrigeration

Product Information

Standard Information

• Brand: DANFOSS
• Manufacturer Part Number: 123B3524
