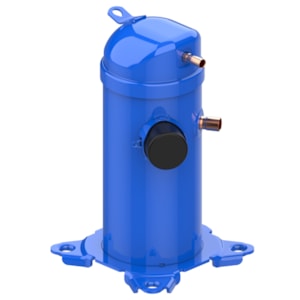

DANFOSS 121L8603 Scroll Compressor HRH032U4LP6A Power 380-415/3/50 460/3/60

Product Description

The DANFOSS 121L8603 Scroll Compressor, HRH032U4LP6A, is suitable for air conditioning applications and operates with R410A and R454B refrigerants. It has a power supply range of 380-415 volts for three-phase systems at both fifty and sixty hertz. The compressor comes in a single pack and features a fixed speed design.

• Compatible with R410A and R454B refrigerants.
• Ideal for air conditioning use.
• Includes an internal overload protector for motor safety.

Product Highlights

This scroll compressor delivers efficient performance, making it well-suited for various air conditioning setups. Its internal overload protection enhances reliability during operation.

Product Information

Standard Information

• Approval: UL
• Configuration: Single

Technical Specifications

• Capacity control: Fixed speed
• Power supply: 380-415/3/50 460/3/60 V
• Diameter: 165 mm
• Discharge connection height: 379 mm
• Discharge pipe size: 1/2 in
• Frequency: 50/60 Hz
• IP protection class: IP22
• Length: 239 mm
• LRA: 45 A
• Max pressure high side: 44.6 bar
• Model number: HRH032U4LP6A
• Motor protection: Internal overload protector
• Number of starts per hour: 12
• Oil charge: 1.06 L
• Refrigerants: R410A, R454B
• Rotational speed at 50Hz: 2900 rpm
• Suction connection size: 3/4 in
• Total height: 413 mm
• Width: 239 mm
