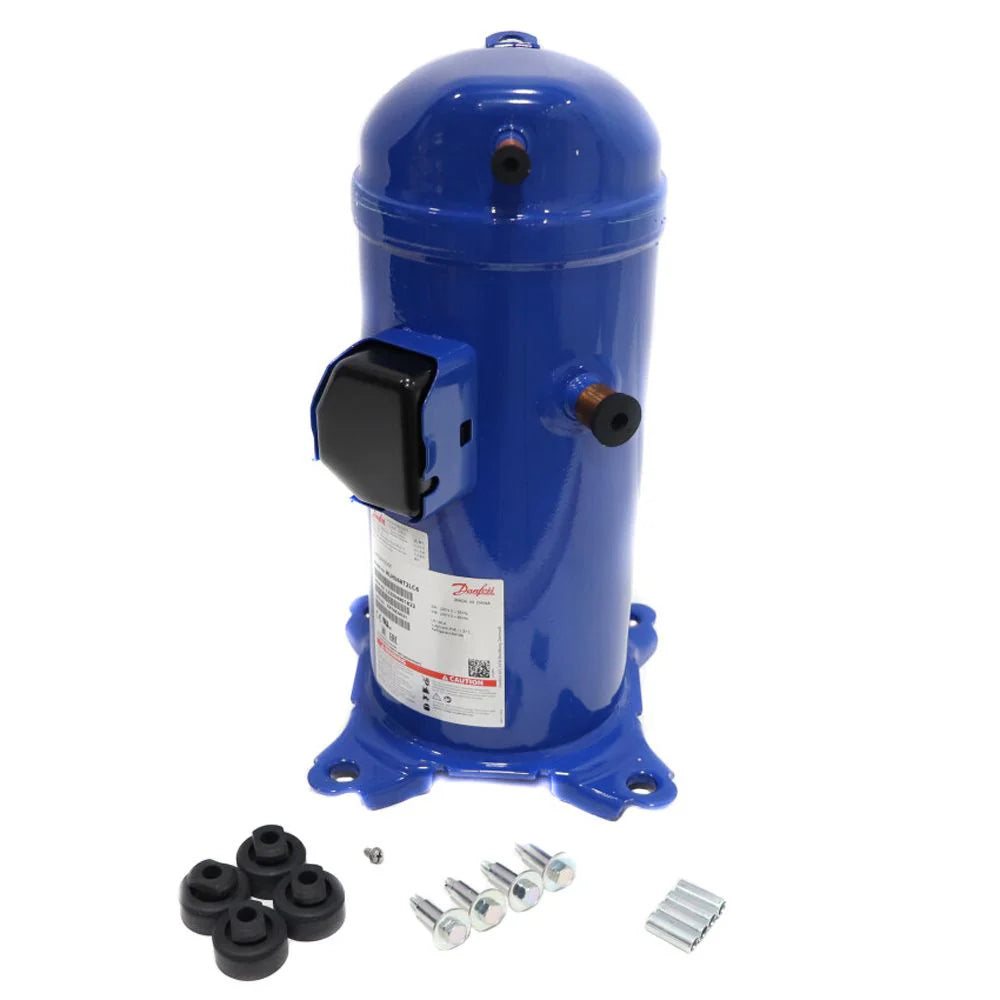

Danfoss 121L1481 HLH068T2LC6 Scroll Compressor 208-230V 3Ph R-410A

Product Description

The Danfoss Scroll Compressor model 121L1481 provides efficient and reliable service for HVAC systems requiring R-410A refrigerant. Suitable for a variety of light commercial and high temperature applications, this unit ensures optimal performance in conditions ranging from 45 to 130 degrees Fahrenheit.

• Robust internal motor protection system.
• Designed for both 50Hz and 60Hz, adaptable for global use.
• High efficiency with 72,000 BTU/h capacity.

Product Highlights

This scroll compressor features a compact design that enhances its installation flexibility and performance efficiency in restricted spaces. With a voltage range of 208 to 230V and three-phase power supply, it is ideal for consistent heavy-duty use.

Product Information

Standard Information

• Brand: Danfoss
• MPN: 121L1481

Technical Specifications

• Refrigerant Type: R-410A
• Voltage / Phase: 208-230V / 3Ph
• BTU Capacity: 72,000 BTU/hr
• Compressor Type: Scroll
• Connection Sizes: 7/8inch ODF suction and 1/2inch ODF discharge
