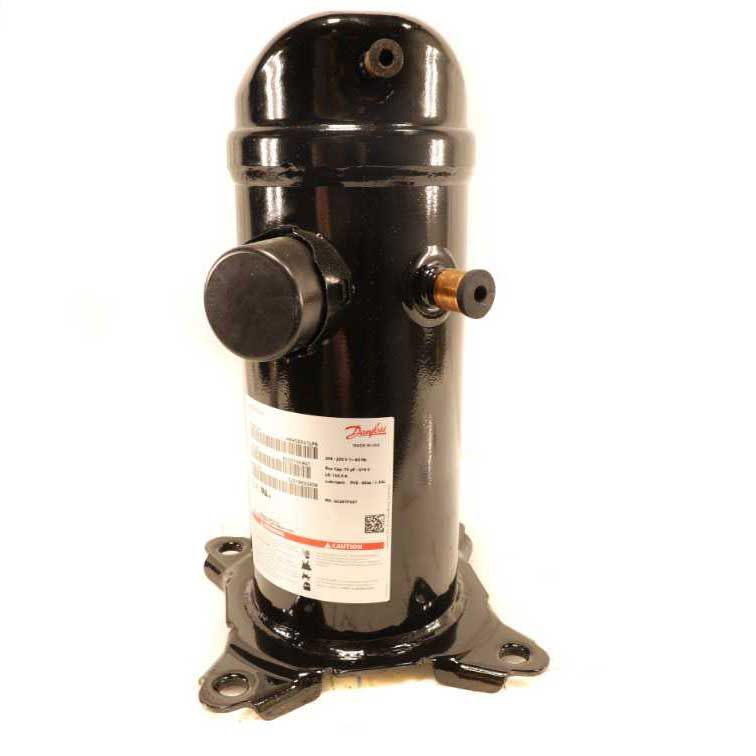

Danfoss 120U2470 Compressor

Product Description

The Danfoss 120U2470 is a high-performance residential scroll compressor designed for use with R410A refrigerant. It is suitable for high-temperature air conditioning applications. This model provides a cooling capacity of 50,000 BTU per hour at sixty hertz under ARI conditions. The compressor is optimized for outdoor temperatures between 45 and 100 degrees Fahrenheit.

• Efficient operation at high temperatures
• Internal motor protection for enhanced reliability
• Connection sizes of seven-eighths inch for suction and one-half inch for discharge

Product Highlights

This compressor supports PVE oil, ensuring optimal performance and longevity. Equipped with spade terminals, it simplifies installation and maintenance for HVAC professionals.

Product Information

Standard Information

• Brand: Danfoss
• MPN: 120U2470

Technical Specifications

• Model: HRH050U1LP6
• Application: Air Conditioning, High Temperature
• Refrigerant Rating: R410A
• BTU Rating: 50000 BTU
• Connection Size: 7/8 x 1/2 inches
• Compressor Connection: ODF
• Motor HP: Not Provided
• Motor RPM: 3500 RPM
• Motor Phase: 1 Ph
• Motor Voltage: 208-230V
• Motor Hertz: 60 Hz
• Weight: 75 pounds
