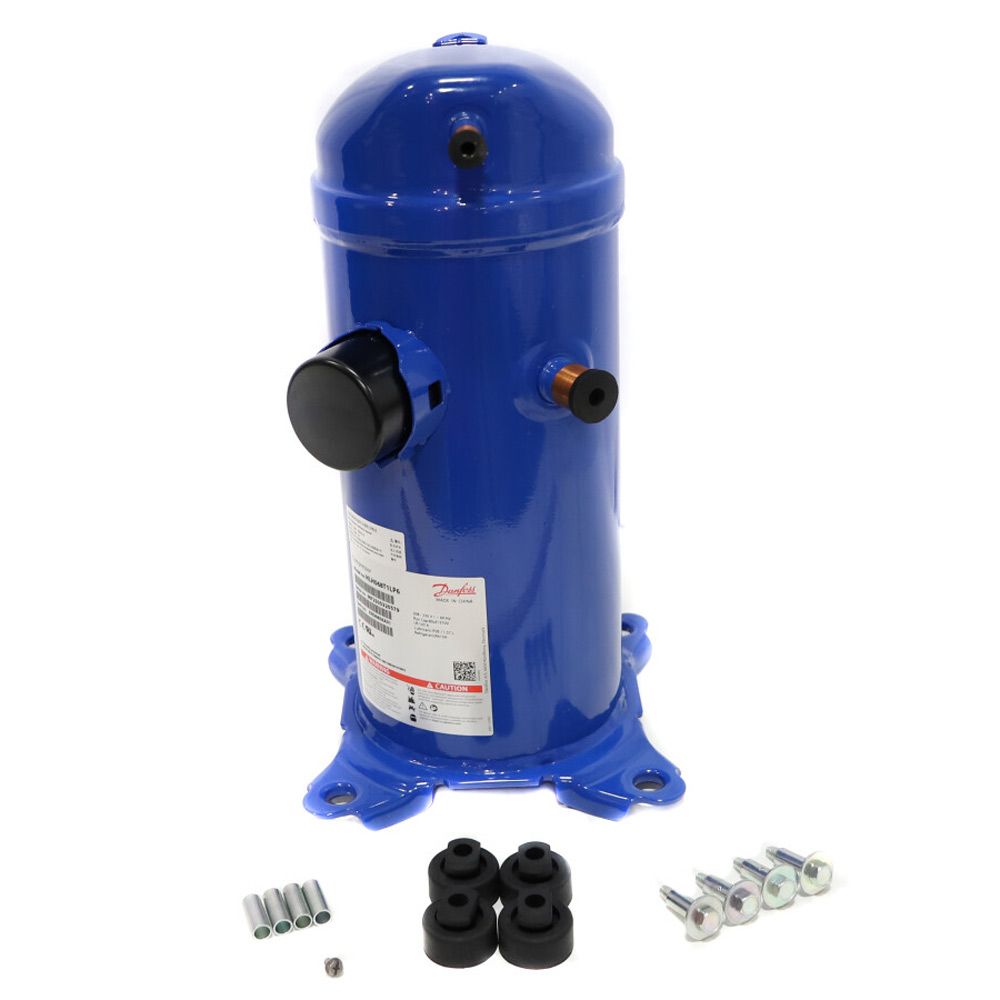

Danfoss 120U1311 HLH068T1LP6 Scroll Compressor R410A Refrigerant

Product Description

Danfoss 120U1311 is a high-temperature scroll compressor designed for air conditioning applications. It uses R410A refrigerant and is optimized for temperatures between forty-five to one hundred thirty degrees Fahrenheit. The compressor operates on two hundred eight to two hundred thirty volts, single-phase, at sixty hertz, with a cooling capacity of sixty-eight thousand BTU per hour.

• Internal motor protection for enhanced safety
• Supports R410A refrigerant and PVE oil
• Includes a seven-eighths inch ODF suction connection and a half-inch ODF discharge connection

Product Highlights

This compressor can be utilized in light commercial air conditioning systems. It provides efficient cooling and is suitable for environments with specific temperature requirements.

Product Information

Standard Information

• Brand: Danfoss
• MPN: 120U1311

Technical Specifications

• Model: HLH068T1LP6
• Application: Air Conditioning
• Refrigerant Rating: R410A
• BTU Rating: 68000 BTU
• Connection Size: 7/8 x 1/2
• Compressor Connection: ODF
• Motor HP: N/A
• Motor RPM: 3500 RPM
• Motor Phase: 1 Ph
• Motor Voltage: 208-230V
• Motor Hertz: 60 Hz
• UPC: 5702424065805
• Replaces: 120U1311
• Weight: 92.50
