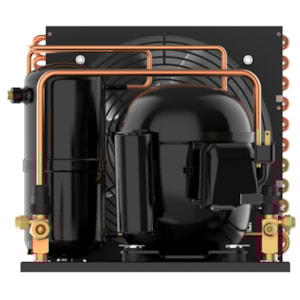

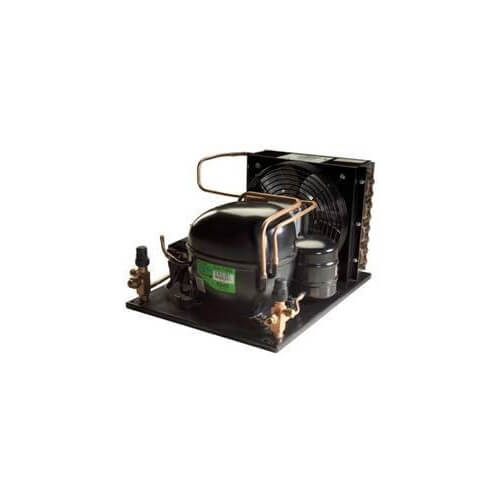

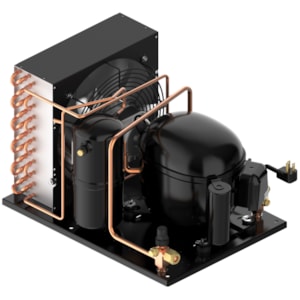

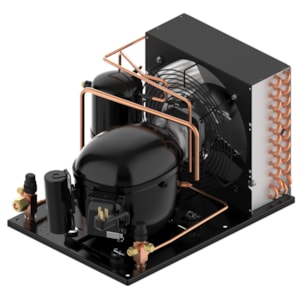

Danfoss 114N2025 3815 BTU Condensing Unit R-134A 1/2 HP

Product Description

The Danfoss 114N2025 condensing unit is essential for refrigeration applications. This unit operates on a single-phase power supply of one hundred fifteen volts and uses R-134A refrigerant. With a capacity of three thousand eight hundred fifteen BTU and a motor rated at one half horsepower, it efficiently manages temperature control.

• High ambient coil design for better heat exchange
• Durable components for reliability
• Compact size with a versatile application range

Product Highlights

Designed for medium back pressure applications, this Danfoss unit contributes to effective refrigeration systems.

Product Information

Standard Information

• Brand: Danfoss
• Part Number: 114N2025

Technical Specifications

• Capacity (BTU): 3815
• Voltage: 115V
• Horse Power: 1/2
• Phase: 1
• Refrigerant Type: R-134A
• Hertz: 60
• Air flow @ 60Hz: 830 m³/h
• Approval: UL Recognized
• Compressor Model: T6215Z1
• Fan Blade Size: 254 mm
• Total Height: 300 mm
• Width: 330 mm
• Length: 432 mm
• Weight: 73.85 pounds
