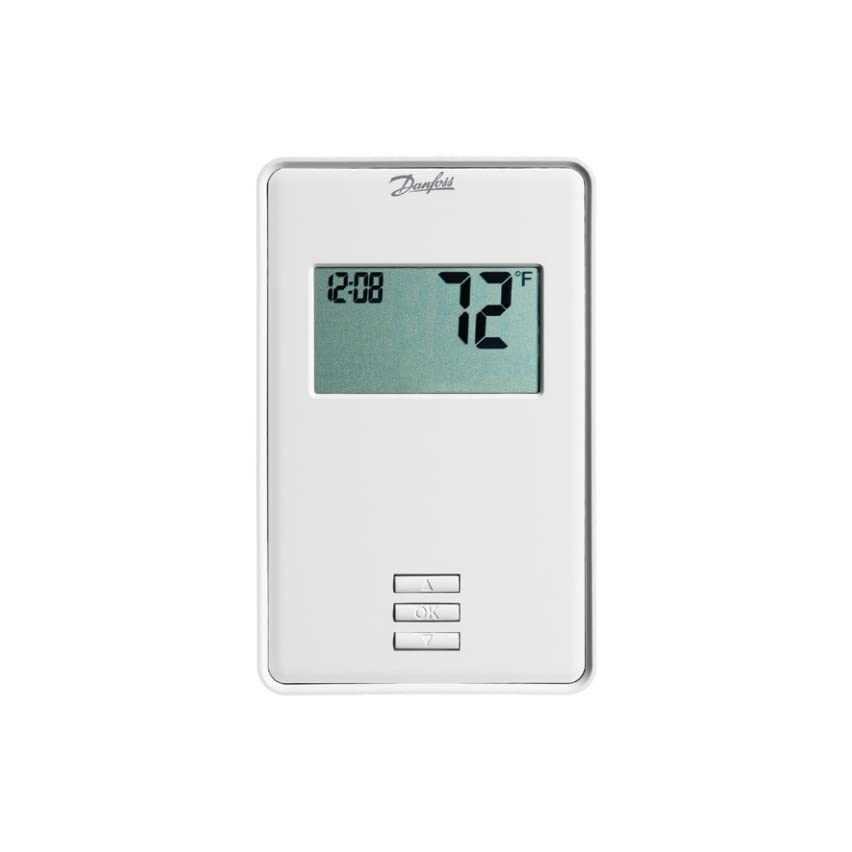

Danfoss 088L5137 LX205 Non-Programmable Thermostat with Floor Sensor (41F - 104F) Replacement 088L5133

Product Description

The Danfoss 088L5137 LX205 Non-Programmable Thermostat is designed for efficient control of electric floor heating systems. It operates within a temperature range of forty-one degrees Fahrenheit to one hundred four degrees Fahrenheit. This thermostat integrates a floor sensor to ensure accurate temperature readings and optimal operating conditions for floor heating.

• Non-programmable design suitable for electric floor heating
• Integrated GFCI for safety
• Real-time clock with 12-hour and 24-hour format options

Product Highlights

This thermostat offers intuitive control and a streamlined installation process. The integrated power consumption tracking helps in monitoring energy usage. The device is compatible with secondary relays for added functionality.

Product Information

Standard Information

• Brand: Danfoss
• Model: LX205

Technical Specifications

• MPN: 088L5137
• Voltage: 120/240V
• Wattage: 1800/3600
• Output Load: 15 A
• Operating Temp Range: 40 to 104°F
• Sensor Type: Floor
• Shipping Dimensions: 5.1 x 3.2 x 0.8 inches
