Danfoss 084Z8066 MBT 5250 Temperature Sensor 50 mm (MBT 5250-0000-050-230)

Product Description

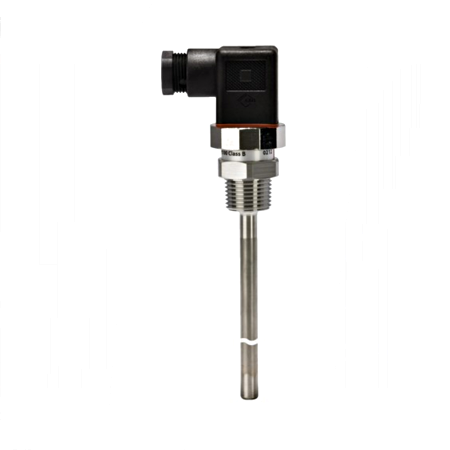

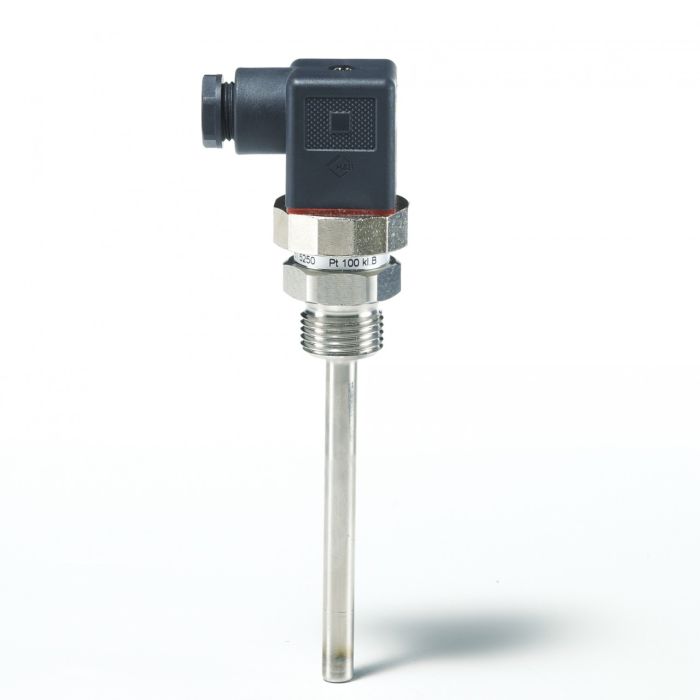

Danfoss 084Z8066 MBT 5250 is an insertion temperature sensor with a 50 mm fixed probe and a Pt100 (100 ohm, EN 60751 Class B) sensing element, measuring from -50 C to 200 C (-58 F to 392 F). The sensor features an AISI 316 Ti protection tube (8 mm), 1/2-14 NPT process connection, angular electrical connector (Pg 11, EN 175301-803-A), IP65 enclosure rating, and provides resistance (ohm) output for temperature monitoring in industrial and refrigeration applications.

• Pt100 platinum sensing element, 100 ohm, EN 60751 Class B; temperature range -50 C to 200 C (-58 F to 392 F)
• 50 mm fixed insertion with AISI 316 Ti protection tube (8 mm) and 1/2-14 NPT process connection (ANSI/ASME B1.20.1)
• Angular electrical connector Pg 11 (EN 175301-803-A), IP65 enclosure rating, resistance (ohm) output; 3 terminals

Product Highlights

Insertion Pt100 sensor, 50 mm probe, 1/2-14 NPT, AISI 316 Ti protection tube, angular Pg 11 connector, IP65

Product Information

Standard Information

• Brand: DANFOSS
• Manufacturer Part Number: 084Z8066

Technical Specifications

• Brand: Danfoss
• MPN: 084Z8066
• Model: MBT 5250
• Type designation: MBT 5250-0000-050-230
• Sensor element type: Pt (platinum)
• Sensor element resistance: 100 Ohm (Pt100)
• Sensor element standard: EN 60751
• Sensor element tolerance: Class B
• Temperature range (C): -50 - 200
• Temperature range (F): -58 - 392
• Insertion length: 50 mm (1.97 in)
• Insertion type: Fixed
• Protection tube material: AISI 316 Ti (stainless steel)
• Protection tube diameter: 8 mm (0.315 in)
• Process connection type: NPT
• Process connection size: 1/2-14 NPT
• Process connection standard: ANSI/ASME B1.20.1
• Connection material: Stainless steel
• Electrical connection: Angular connector
• Electrical connection size: Pg 11
• Electrical connection standard: EN 175301-803-A
• Number of terminals: 3
• Output signal: Ohm (resistance)
• Enclosure rating: IP65
• Ambient temperature max: 125 C (257 F)
• Approvals: CE
• EAN/GTIN: 5702423088430
• Gross weight (kg): 0.147
• Net weight (kg): 0.143
