Danfoss 068Z3404 Tes 2 R404A/R507 B 3/8X1/2 inchesFl

Product Description

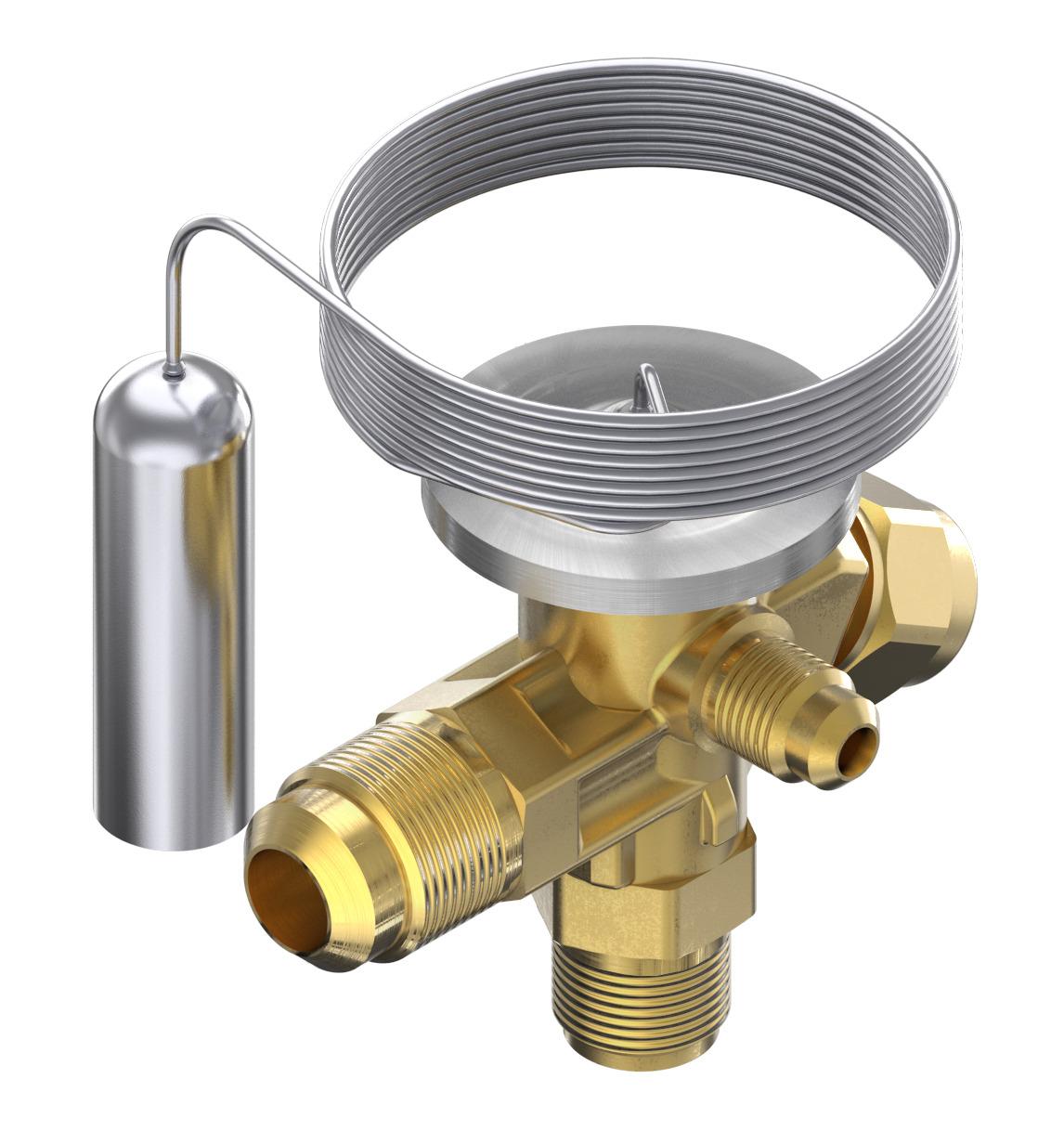

The DANFOSS 068Z3404 is a TES 2 expansion valve optimized for R404A and R507 refrigerants. It features a Range B charge for evaporating temperatures from -75°F to -15°F. This valve utilizes an externally equalized 1/4 inch flare port to compensate for pressure drops, ensuring coil efficiency in high-PSI systems up to 500 psig.

• Temperature range: -60 to -25°C
• Pressure equalization: Externally equalized
• Superheat setting: Adjustable

Product Highlights

This expansion valve is designed for precise superheat control in secondary refrigeration and low-temperature storage applications.

Product Information

Standard Information

• Brand: DANFOSS
• Manufacturer Part Number: 068Z3404
• Country of Origin: Denmark

Technical Specifications

• Type: TE 2
• Product group: Expansion valves
• Product Name Description: Thermostatic expansion valve
• Approval: EAC, LLC CDC TYSK
• Body material: Brass
• Capillary tube length [in]: 59 in
• China RoHS compliance: Yes with exemptions
• China RoHS exemption clause: 7.1, 7.3
• Connection material: Brass
• Contains batteries: No
• Direction: Angleway
• Equalization connection type: Flare
• Equalization size [in]: 1/4 in
• EU RoHS compliance: Yes with exemptions
• EU RoHS exemption clause: 6(a), 6(c)
• Flow direction: Bi-flow with orifice 01-05
• Flow direction indicator: Embossed 1-way arrow
• Fluid Group: 2
• Inlet connection type: Flare
• Inlet size [in]: 3/8 in
• Max. Working Pressure [bar]: 34 bar
• Max. Working Pressure [psig]: 500 psig
• Outlet connection type: Flare
• Outlet size [in]: 1/2 in

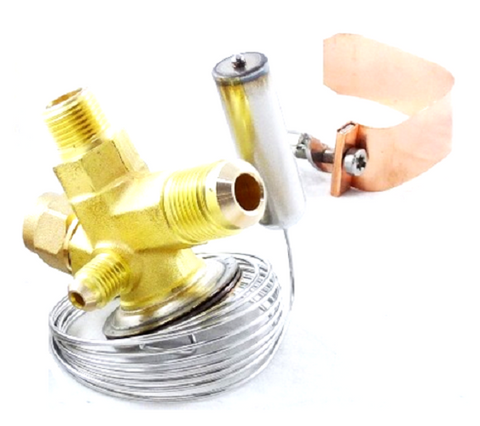

• Parts included: Bulb strap
• Parts Program name: T2/TE2
• PED category: Art. 4, par. 3
• Pressure equalization: Externally equalized
• Product accessories: TXV accessories
• REACH Candidate List substances: Lead (CAS no. 7439-92-1)
• Refrigerants: R404A/R507A
• SCIP dossier product name: T2 /TE2 - Thermostatic Expansion Valve
• Serviceable: TXV spare parts
• Static Superheat (SS) [°C]: 4 °C
• Static Superheat (SS) [°F]: 7.2 °F
• Superheat setting: Adjustable
• Temperature range [°C] [max]: -25 °C
• Temperature range [°C] [min]: -60 °C
• Temperature range [°F] [max]: -15 °F
• Temperature range [°F] [min]: -75 °F
• Brand: Danfoss
• Expansion Valve Type: TES 2
• Evaporating Temperature Range: -75°F to -15°F
• Equalization Type: External
• Equalization Port: 1/4 inch flare
• Maximum System Pressure: 500 psig
• Connections: 3/8" x 1/2" flare
• Capillary Tube Length: 59 inches
• Bulb Material: Stainless steel
• MFR #: 068Z3404
• Product line: Air Conditioning and Commercial Refrigeration
• Product Type: TE 2
• Material Description: TE 2 Therm. exp. valve Flare/Flare
• Item: Tes 2 R404A/R507 B 3/8X1/2"Fl
• Country of Origin: Denmark
