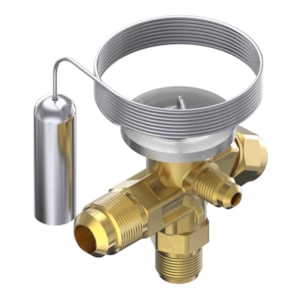

The Danfoss 068Z3211 Thermostatic Expansion Valve | TE 2 | R22/R407C. This valve is designed to provide reliable temperature control in a wide range of applications. It features a temperature range of -40 to 10 degrees Celsius, a MOP Point of 15 degrees Celsius, and externally equalized pressure. The following are the parts included in this product:
Bulb strap
Parts Program name: T2/TE2
Pressure equalization: Externally equalized
Product accessories: TXV accessories
Product family name: T2
Additional features include a product group of Expansion Valves, a body material of Brass, a capillary tube length of 59 inches, a connection material of Brass, a direction of Angleway, an equalization connection type of FLARE, an equalization size of 1/4 IN, a flow direction of Single-flow, a flow direction indicator of Embossed 1-way arrow, a fluid group of 2, an inlet connection type of FLARE, an inlet size of 3/8 in, a max. working pressure of 34 bar, a max. working pressure of 500 psig, a MOP Point of MOP 100, a MOP Point of 15 C, a MOP Point of 60 F, an outlet connection type of FLARE, and an outlet size of 1/2 in. The Danfoss 068Z3211 Thermostatic Expansion Valve is approved by EAC LLC CDC TYSK and is identical to the 068Z3239 product.
