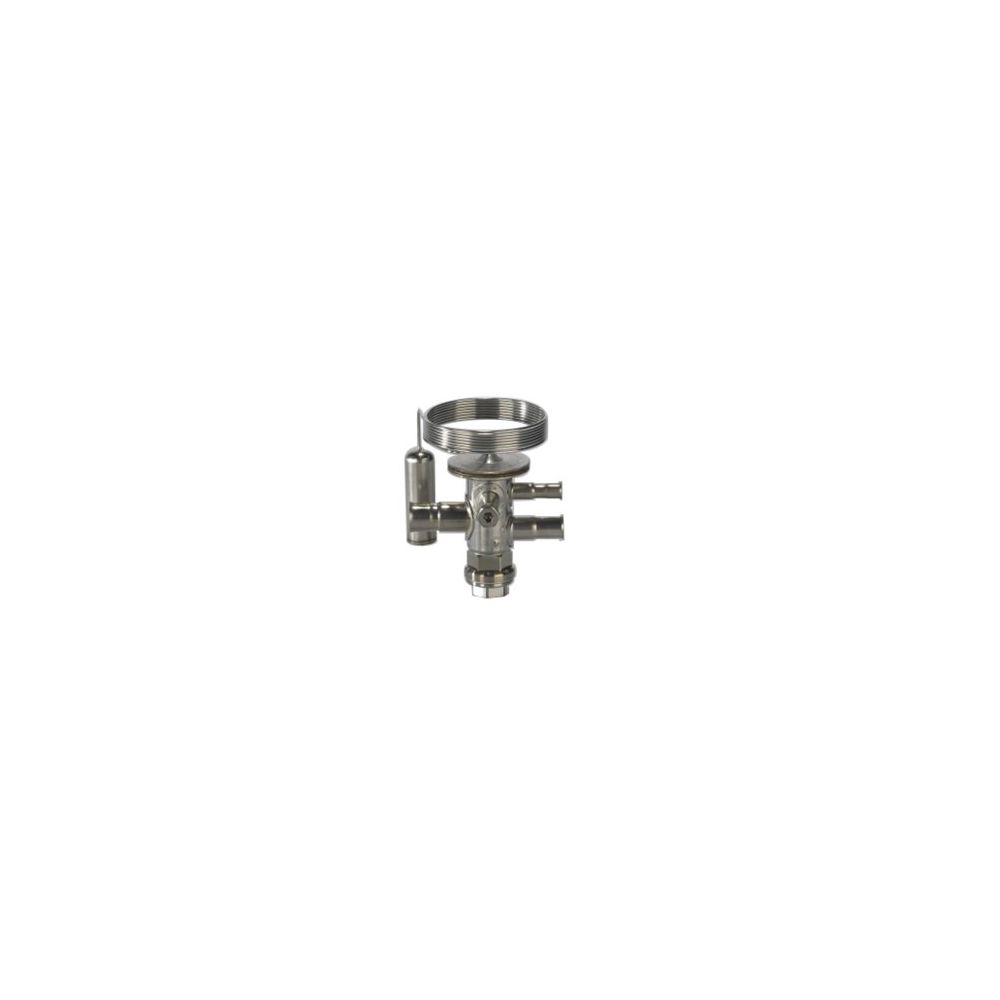

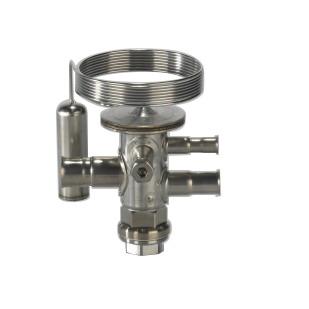

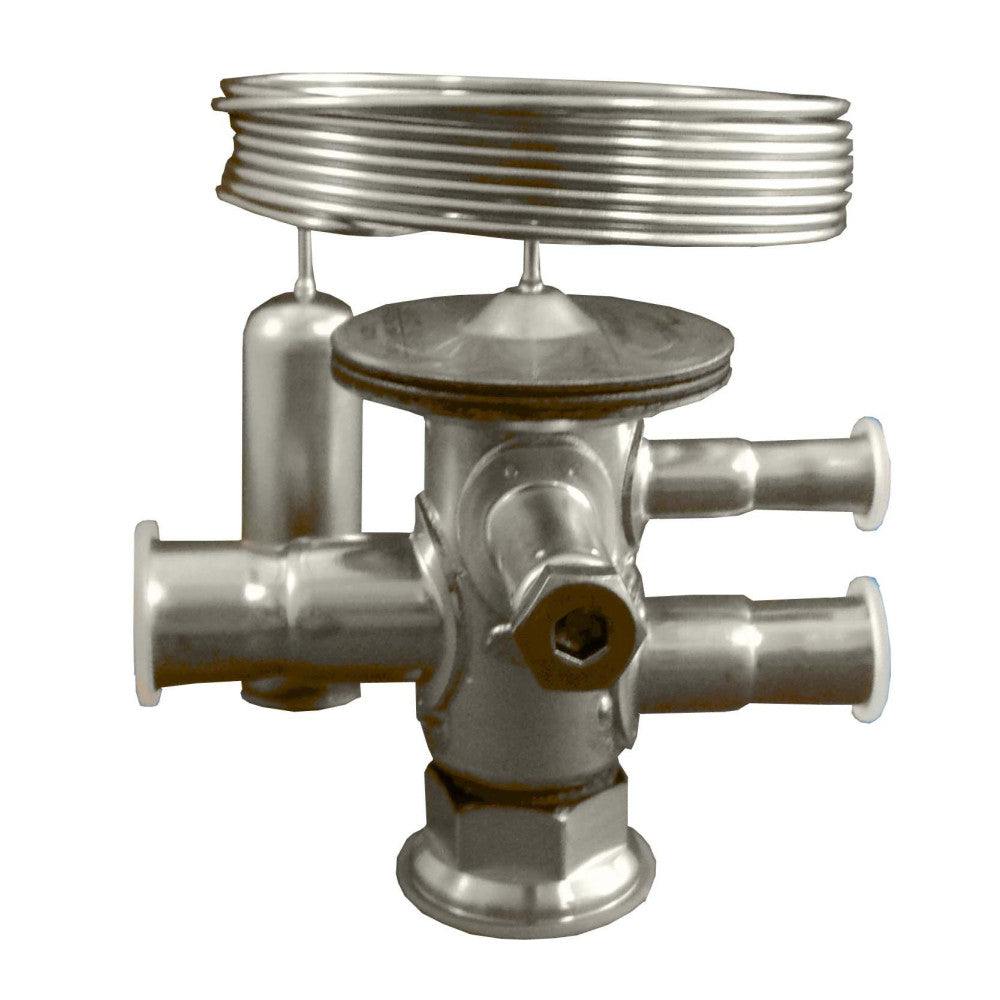

Danfoss 068U3859 Thermostatic Expansion Valve TUAE R448A

Product Description

The Danfoss 068U3859 thermostatic expansion valve TUAE is suitable for R448A refrigerant. This valve is designed for air conditioning and commercial refrigeration systems. It operates effectively within a temperature range from minus forty degrees Celsius to ten degrees Celsius. The product features external pressure equalization to enhance performance.

• Temperature range: -40 to 10 degrees Celsius
• Externally equalized for better control
• Made of stainless steel for durability

Product Highlights

This valve is essential for maintaining the efficiency of cooling systems. It helps control the amount of refrigerant that flows into the evaporator, ensuring optimal operation.

Product Information

Standard Information

• Type: TUAE
• Product Name: Thermostatic expansion valve

Technical Specifications

• Refrigerants: R448A
• Temperature range (C): -40 to 10
• Pressure equalization: Externally equalized
• Body material: Stainless steel
• Max. Working Pressure: 34 bar (500 psig)
• Inlet connection: Solder, ODF, 3/8 inch
• Outlet connection: Solder, ODF, 1/2 inch
