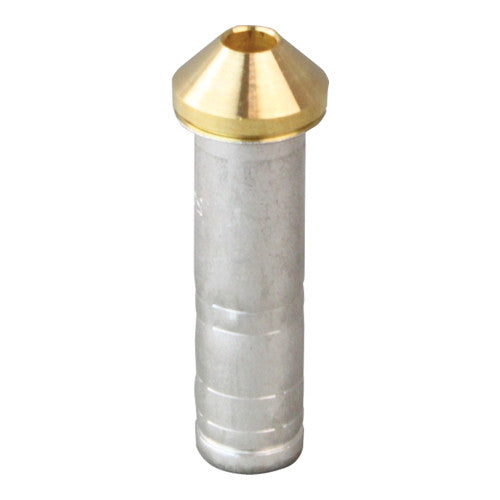

Danfoss 068-200200 Txv Orifice Cartridge 0X T2 Size

Product Description

The Danfoss 068-200200 is a T2 thermostatic expansion valve orifice cartridge designed for use in refrigeration and air conditioning systems. This OX orifice cartridge fits directly into compatible Danfoss TXV valve bodies, allowing technicians to service or reconfigure expansion valves without replacing the entire valve assembly. Thermostatic expansion valves are critical components in refrigeration circuits. They regulate refrigerant flow into the evaporator, maintaining the correct superheat level and protecting the compressor from liquid slugging. The orifice cartridge is the precision metering element inside the valve body. Selecting the correct orifice size ensures the system operates at peak efficiency for its designed load and refrigerant type. The 068-200200 is rated for use with multiple common refrigerants including R22, R134A, and R404A/R507, each at an eighth-ton capacity. This makes it a versatile replacement part for small refrigeration applications such as reach-in coolers, display cases, vending machines, and other light commercial refrigeration equipment. HVAC and refrigeration technicians working on equipment that uses Danfoss TXV valves will recognize this orifice as a standard service component. Having the correct orifice on hand reduces downtime during service calls. The cartridge measures 2 inches in length and weighs just 0.01 pounds, making it a compact and easy-to-handle service part. Danfoss is a globally recognized manufacturer of refrigeration controls and valves, and their expansion valve components are known for precision tolerances and long service life. This orifice cartridge is a direct OEM-style replacement for supported Danfoss valve bodies requiring the T2 OX configuration.

• Compatible refrigerants: R22, R134A, and R404A/R507 at one-eighth ton capacity each
• Fits Danfoss TXV valve bodies requiring the T2 OX orifice cartridge configuration
• Compact design at 2 inches in length for easy installation in tight refrigeration system spaces

Product Highlights

The Danfoss 068-200200 T2 OX orifice cartridge is a precise, multi-refrigerant-compatible service component for Danfoss thermostatic expansion valves used in light commercial refrigeration systems. It allows field technicians to service TXV assemblies quickly and accurately.

Product Information

Standard Information

• Brand: DANFOSS
• Manufacturer Part Number: 068-200200

Technical Specifications

• Orifice Type: OX
• Valve Series: T2
• Compatible Refrigerant - R22 Capacity: 1/8 ton
• Compatible Refrigerant - R134A Capacity: 1/8 ton
• Compatible Refrigerant - R404A/R507 Capacity: 1/8 ton
• Length: 2 inches
• Ship Weight: 0.01 pounds
