Product Description

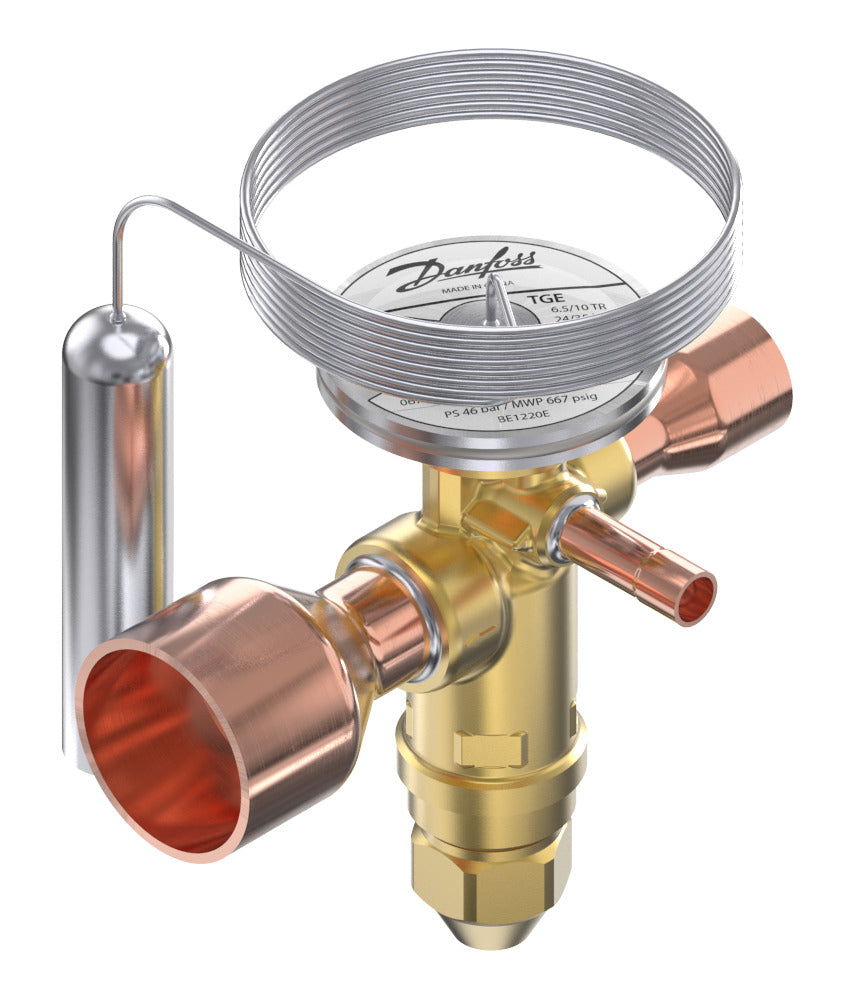

The DANFOSS 067N9534 is a TGE thermostatic expansion valve designed for R32 refrigerant applications. This valve features a temperature range of -30 to 15 °C and orifice capacities of 102 kW. It incorporates externally equalized pressure, a balanced port design, and bi-flow direction. The superheat setting is adjustable, and the valve is UL approved for R32 refrigerants.
- Adjustable superheat setting for precise control
- Bi-flow direction for versatile operation
- Externally equalized pressure for stable performance
Product Highlights
This TGE valve offers precise refrigerant flow control with a balanced port design and UL approval for R32 refrigerants.
Product Information
Standard Information
-
Brand: DANFOSS
-
Manufacturer Part Number: 067N9534
Technical Specifications
-
Gross Weight: 0.771 Kilogram
-
Net Weight: 0.667 Kilogram
-
Volume: 2.3 Liter
-
EAN/UPC: 5715162707425
-
Type: TGE
-
Product Group: Expansion valves
-
Product Name: Thermostatic expansion valve
-
Approval: C UL US LISTED
-
Balanced Port: Yes
-
Body Material: Brass
-
Capillary Tube Length (in): 59 in
-
Capillary Tube Length (mm): 1500 mm
-
Connection Material: Copper
-
Contains Batteries: No
-
Direction: Straightway
-
Element Temperature Max (°C): 110 °C
-
Element Temperature Max (°F): 230 °F
-
Equalization Connection Type: Solder, ODF
-
Equalization Size (in): 1/4 in
-
Flow Direction: Bi-flow
-
Flow Direction Indicator: Embossed 1-way arrow
-
Fluid Group: 1
-
Inlet Connection Type: Solder, ODF
-
Inlet Size (in): 7/8 in
-
Max. Working Pressure (bar): 49 bar
-
Max. Working Pressure (psig): 711 psig
-
MOP Point (psig): MAH
-
Orifice Capacities (kW): 102 kW
-
Orifice Capacities (TR): 29 TR
-
Orifice Size: 16
-
Outlet Connection Type: Solder, ODF
-
Outlet Size (in): 1 1/8 in
-
Parts Included: Bulb strap
-
Pressure Equalization: Externally equalized
-
Product Accessories: TXV accessories
-
Rated Capacity Condition Range N (IMP): tcond=100 °F tevap=40 °F tliq=98 °F
-
Rated Capacity Condition Range N (SI): tcond=38 °C tevap=4.4 °C tliq=37 °C
-
Refrigerants: R32
-
Serviceable: No
-
Static Superheat (SS) (°C): 4 °C
-
Static Superheat (SS) (°F): 7.2 °F
-
Superheat Setting: Adjustable
-
Temperature Range Max (°C): 15 °C
-
Temperature Range Min (°C): -30 °C
-
Temperature Range Max (°F): 60 °F
-
Temperature Range Min (°F): -22 °F
-
UL Approved Refrigerants: R32
-
UL Mark: Yes
-
Material Description: TGE 29 ExpansionValve Solder I/8
-
Product Line: Air Conditioning and Commercial Refrigeration
