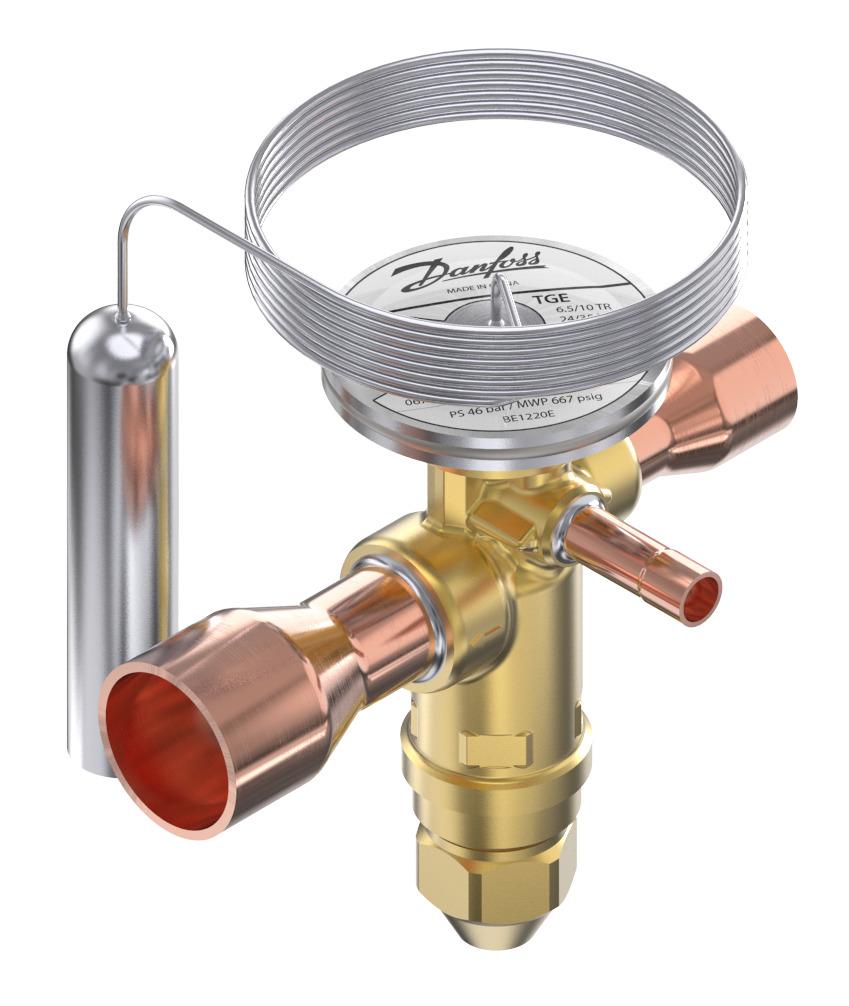

DANFOSS 067N9529 TGE Thermostatic Expansion Valve R454B

Product Description

The DANFOSS 067N9529 is a thermostatic expansion valve (TXV) specifically designed for R454B refrigerant. This valve features external pressure equalization, allowing for better control and efficiency in cooling applications.

• Constructed with a brass body and copper connections.
• Supports bi-flow direction for versatile installation.
• Includes adjustable superheat settings for enhanced performance.

Product Highlights

The TGE series valve is ideal for air conditioning and commercial refrigeration systems with a capacity over five tons.

Product Information

Standard Information

• MPN: 067N9529
• Brand: DANFOSS

Technical Specifications

• Product Type: Thermostatic Expansion Valve
• Valve Model: TGE10-8
• Refrigerant: R454B
• Orifice Size: 8
• Orifice Capacity (kW): 35 kW
• Orifice Capacity (TR): 10 TR
• Temperature Range (°C) Min: -30 °C
• Temperature Range (°C) Max: 15 °C
• Static Superheat (SS) (°C): 4 °C
• Superheat Setting: Adjustable
• Pressure Equalization: Externally Equalized
• Inlet Size: 5/8 in
• Outlet Size: 7/8 in
• Body Material: Brass
• Max Working Pressure (bar): 49 bar
• Flow Direction: Bi-flow
• Capillary Tube Length: 59 in
• Element Temperature Max (°C): 110 °C
• Balanced Port: Yes
• Approvals: C UL US LISTED, EAC, LLC CDC TYSK
