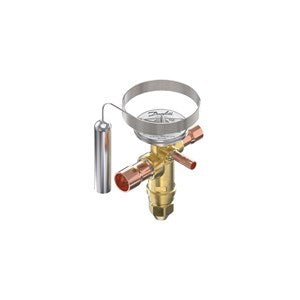

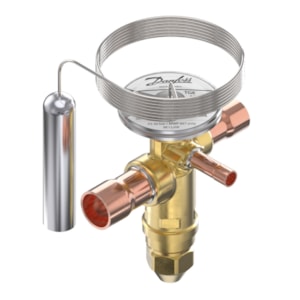

DANFOSS 067N9528 Thermostatic Expansion Valve, R454B, TGE

Product Description

The DANFOSS 067N9528 is a thermostatic expansion valve tailored for R454B refrigerant. The TGE model features external pressure equalization and a balanced port design that enhances efficiency. It is equipped with a bulb strap, making it suitable for installations requiring a capacity greater than five tons.

• Inlet/Outlet connections measure one half inch and five eighths inch ODF solder.
• Support for bi-flow enhances versatility in system configurations.
• Adjustable superheat settings cater to diverse operational conditions.

Product Highlights

This valve is ideal for HVAC applications where precise temperature control is necessary.

Product Information

Standard Information

• Refrigerant: R454B
• Temperature Range: minus thirty to fifteen degrees Celsius

Technical Specifications

• MPN: 067N9528
• Valve Model: TGE10-6
• Orifice Capacity (kW): 26 kW
• Orifice Capacity (TR): 7.5 TR
• Pressure Equalization: Externally equalized
• Balanced Port: Yes
• Body Material: Brass
• Capillary Tube Length: 1500 mm
• Connection Material: Copper
• Direction: Straightway
• Element Temperature Max: 110 degrees Celsius
• Equalization Connection Type: Solder, ODF
• Equalization Size: 1/4 inch
• Flow Direction: Bi-flow
• Inlet Connection Type: Solder, ODF
• Inlet Size: 1/2 inch
• Outlet Connection Type: Solder, ODF
• Outlet Size: 5/8 inch
• Max Working Pressure: 49 bar
• Orifice Size: 6
• Superheat Setting: Adjustable
• Approvals: C UL US LISTED, EAC, LLC CDC TYSK
• Static Superheat (SS): 4 degrees Celsius
• Weight: 0.37 kg
