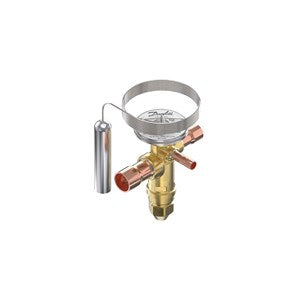

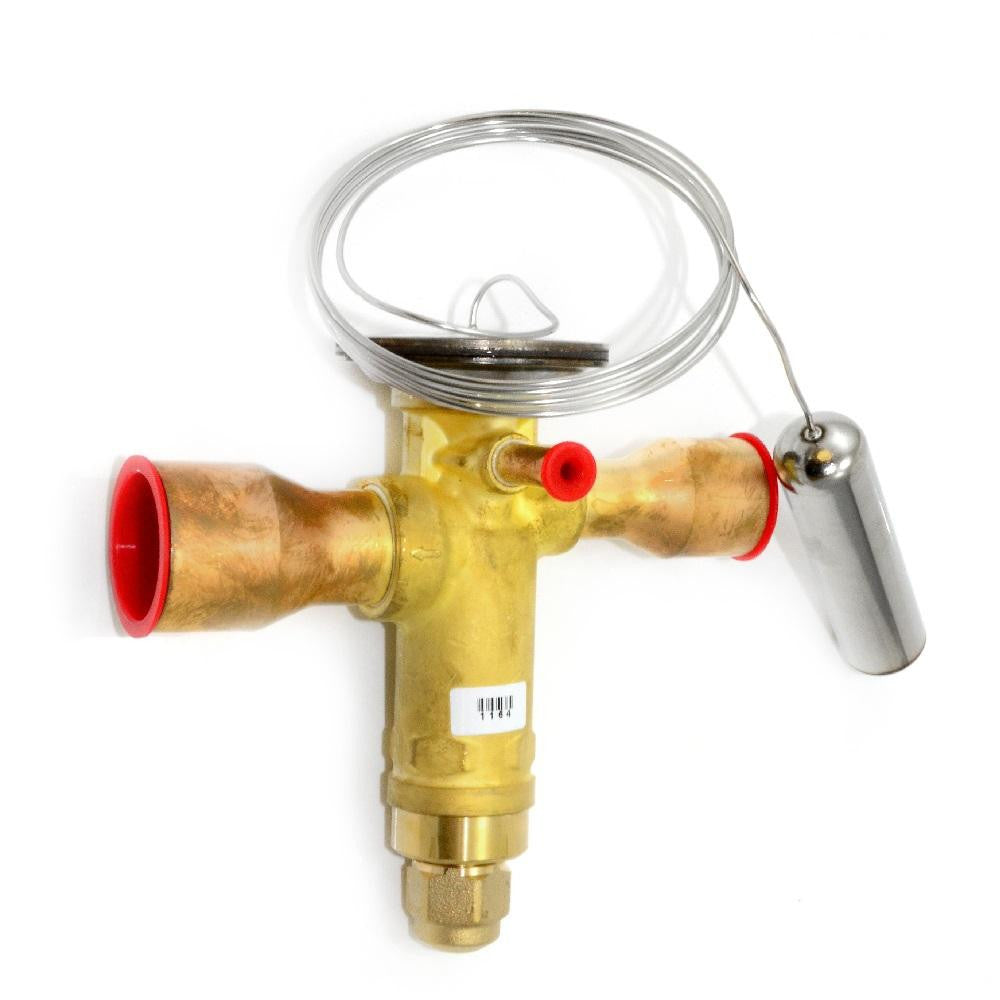

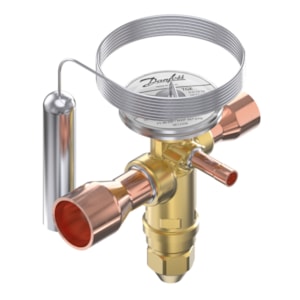

DANFOSS 067N3154 TGE Thermostatic Expansion Valve

Product Description

The DANFOSS 067N3154 is a TGE thermostatic expansion valve suitable for R32 and R410A refrigerants. It features a balanced port design that supports bi-flow operations. The valve is also marked with an embossed one-way arrow to indicate the correct flow direction. It includes a bulb strap and has an externally equalized design with a quarter inch equalization connection, making it easy to install and integrate into existing systems. The adjustable superheat setting enhances its versatility.

• Compatible with R32 and R410A refrigerants.
• Externally equalized pressure for efficient operation.
• Incorporates a bulb strap for secure installation.

Product Highlights

Ideal for HVAC applications, the DANFOSS 067N3154 enables precise control over refrigerant flow, ensuring optimal system performance.

Product Information

Standard Information

• Type: TGE
• Refrigerants: R32, R410A

Technical Specifications

• Inlet Connection Type: Solder, ODF
• Outlet Connection Type: Solder, ODF
• Equalization Connection Type: Solder, ODF
• Inlet Size: 1/2 in
• Outlet Size: 7/8 in
• Equalization Size: 1/4 in
• Capillary Tube Length: 59 in (1500 mm)
• Orifice Size: 6
• Max Working Pressure: 711 psig (49 bar)
• Element Temperature Max.: 230 °F (110 °C)
• Temperature Range: -40 °F to 50 °F (-40 °C to 10 °C)
• Flow Direction: Bi-flow
• Superheat Setting: Adjustable
• Body Material: Brass
• Connection Material: Copper
• Rated Capacity R410A: 24 kW (6.5 TR)
• Rated Capacity R32: 35 kW (10 TR)
• Gross Weight: 0.448 kg
• Net Weight: 0.373 kg
• Volume: 1.739 Liter
