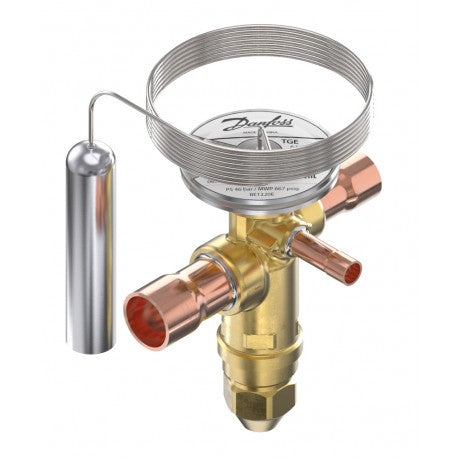

DANFOSS 067N3153 Thermostatic Expansion Valve TGE R410A R32

Product Description

The DANFOSS 067N3153 is a thermostatic expansion valve that is designed for R410A and R32 refrigerants. This TGE valve features an external pressure equalization system and allows for an adjustable superheat setting. Constructed with a brass body and copper connections, it is built for reliability and performance in refrigeration systems. The valve operates efficiently within a temperature range of negative forty to ten degrees Celsius.

• Compatible with R410A and R32 refrigerants
• Includes external pressure equalization
• Adjustable superheat setting for optimal performance

Product Highlights

This thermostatic expansion valve helps maintain consistent pressures and temperatures in HVAC systems.

Product Information

Standard Information

• Type: TGE
• Body Material: Brass

Technical Specifications

• Max Working Pressure: 49 bar
• Temperature Range: Negative forty to ten degrees Celsius
• Inlet Connection Size: 1/2 inches
• Outlet Connection Size: 5/8 inches
• Superheat Setting: Adjustable
• Flow Direction: Bi-flow
• Refrigerants: R32, R410A
• Capillary Tube Length: 59 inches
