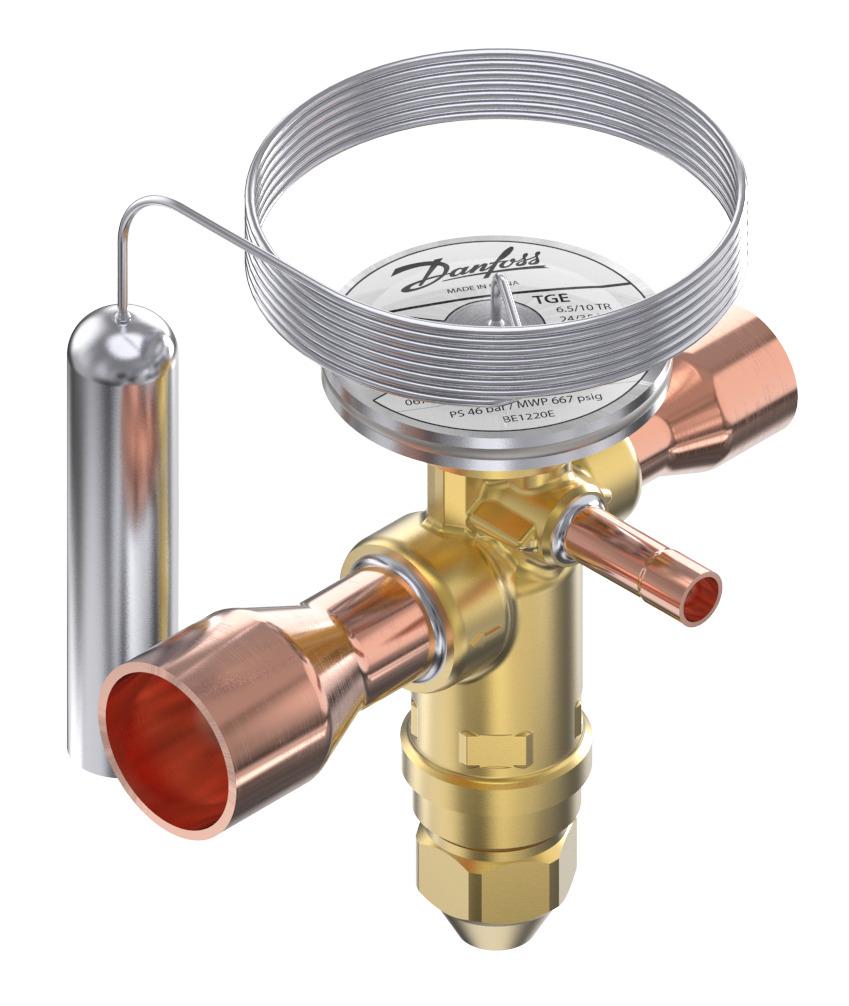

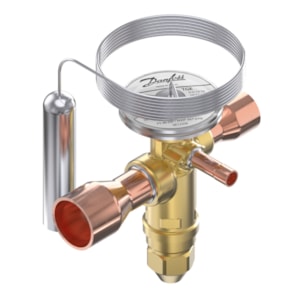

Danfoss 067n3038 thermostatic expansion valve tge r410a 125 kw 1 1/8 x 1 3/8 inch replaces 067n3018

Product Description

The DANFOSS 067N3038 Thermostatic Expansion Valve, TGE series, is designed for R410A refrigerant systems. It operates within a temperature range of -25 to 10 °C and offers orifice capacities of 125 kW. This valve features externally equalized pressure and a balanced port design, ensuring precise refrigerant flow control. Constructed with a brass body and copper connections, it supports bi-flow direction and has an adjustable superheat setting for optimal performance in air conditioning and commercial refrigeration applications.

• Temperature range: -25 to 10 °C (-15 to 50 °F)
• Orifice capacities: 125 kW (35 TR)
• Pressure equalization: Externally equalized

Product Highlights

Features a balanced port design, bi-flow operation, and adjustable superheat, with a robust brass body and UL approval for R410A.

Product Information

Standard Information

• Brand: DANFOSS
• Manufacturer Part Number: 067N3038

Technical Specifications

• Volume: 2.812 Liter
• Type: TGE
• Product Group: Expansion valves
• Approval: C UL US LISTED, EAC, LLC CDC TYSK
• Balanced Port: Yes
• Body Material: Brass
• Capillary Tube Length: 118 in (3000 mm)
• Connection Material: Copper
• Direction: Straightway
• Element Temperature Max: 110 °C (230 °F)
• Equalization Connection Type: Solder, ODF
• Equalization Size: 1/4 in
• Flow Direction: Bi-flow
• Flow Direction Indicator: Embossed 1-way arrow
• Fluid Group: 2
• Inlet Connection Type: Solder, ODF
• Inlet Size: 1 1/8 in
• Max Working Pressure: 49 bar (711 psig)
• MOP Point: 15 °C (60 °F), MOP 165 psig
• Orifice Capacities: 125 kW (35 TR)
• Orifice Size: 30
• Outlet Connection Type: Solder, ODF
• Outlet Size: 1 3/8 in
• PED Category: Art. 4, par. 3
• Pressure Equalization: Externally equalized
• Rated Capacity Condition Range: SI: tcond=38 °C tevap=4.4 °C tliq=37 °C; IMP: tcond=100 °F tevap=40 °F tliq=98 °F
• Refrigerants: R410A
• Serviceable: No
• Static Superheat (SS): 4 °C (7.2 °F)
• Superheat Setting: Adjustable
• Temperature Range: -25 to 10 °C (-15 to 50 °F)
• UL Mark: Yes
• Max Bulb Temperature: 302 °F
• Max Valve Body Temperature: 150 °C (302 °F)
• Material Description: TGE 35 ExpansionValve Solder I/8
• Product Line: Air Conditioning and Commercial Refrigeration
• Inlet/Outlet Size: 1 1/8 x 1 3/8 in
