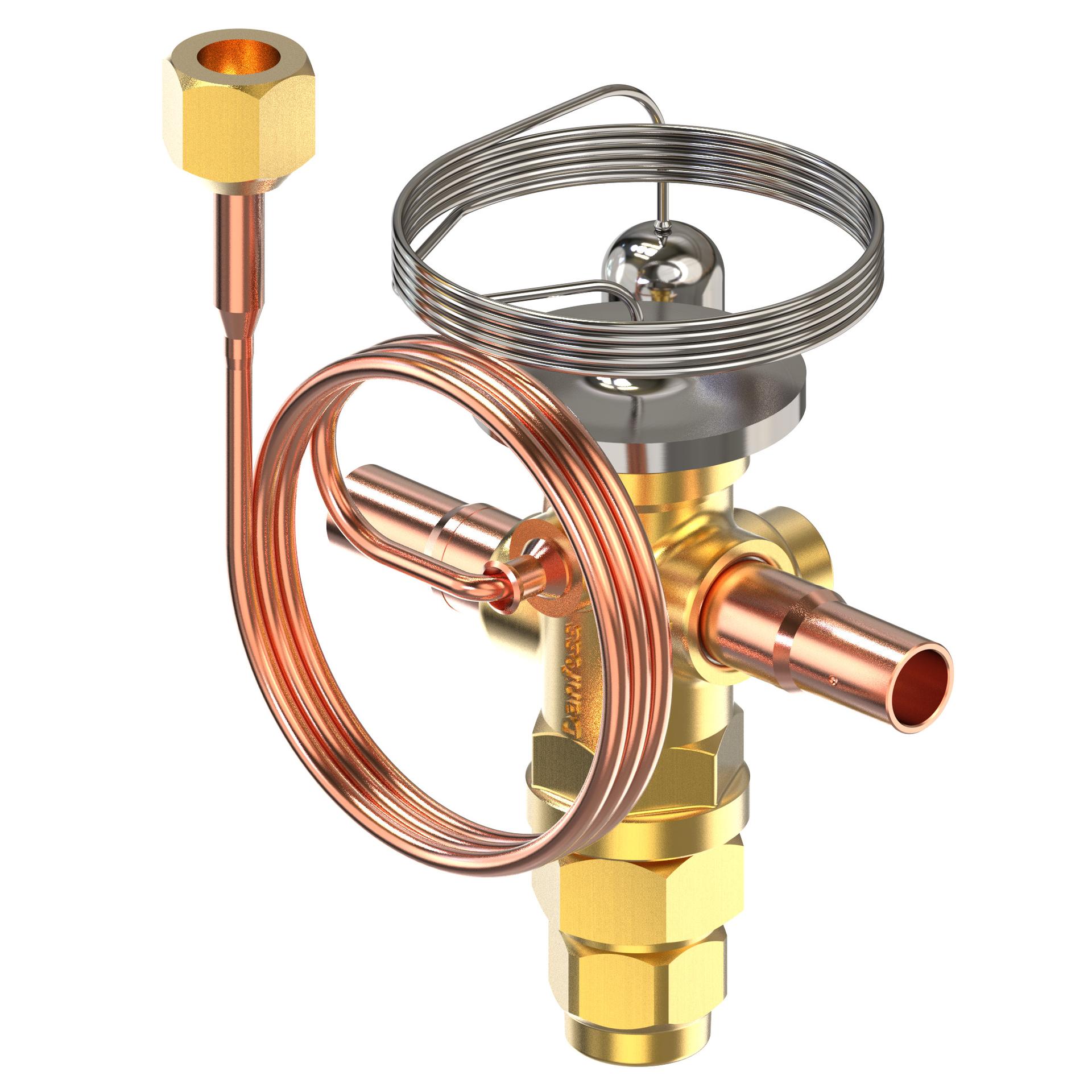

DANFOSS 067L6004 TR 6 Thermostatic Expansion Valve 067L6004

Product Description

The DANFOSS 067L6004 is a thermostatic expansion valve designed specifically for R454B refrigerant applications. This component features a balance port and allows for adjustable superheat settings. It is equipped with a check valve and features a sturdy brass body, ensuring durability and reliable performance in various installations.

• Compatible with R454B refrigerant.
• Adjustable superheat for optimized performance.
• Brass construction for enhanced durability.

Product Highlights

This thermostatic expansion valve regulates refrigerant flow, enhancing the efficiency of cooling systems.

Product Information

Standard Information

• Type: TR 6
• Approval: c UL us

Technical Specifications

• Refrigerant: R454B
• Adjustable: Yes
• Body Material: Brass
• Capillary Tube Length: 31.5 inches
• Check Valve: Yes
• Inlet Connection Type: Solder, ODF
• Inlet Size: 3/8 inch
• Outlet Connection Type: Solder, ODF
• Outlet Size: 3/8 inch
• Max Working Pressure: 49 bar / 711 psig
• Temperature Range: -10 °C to 15 °C / 15 °F to 60 °F
