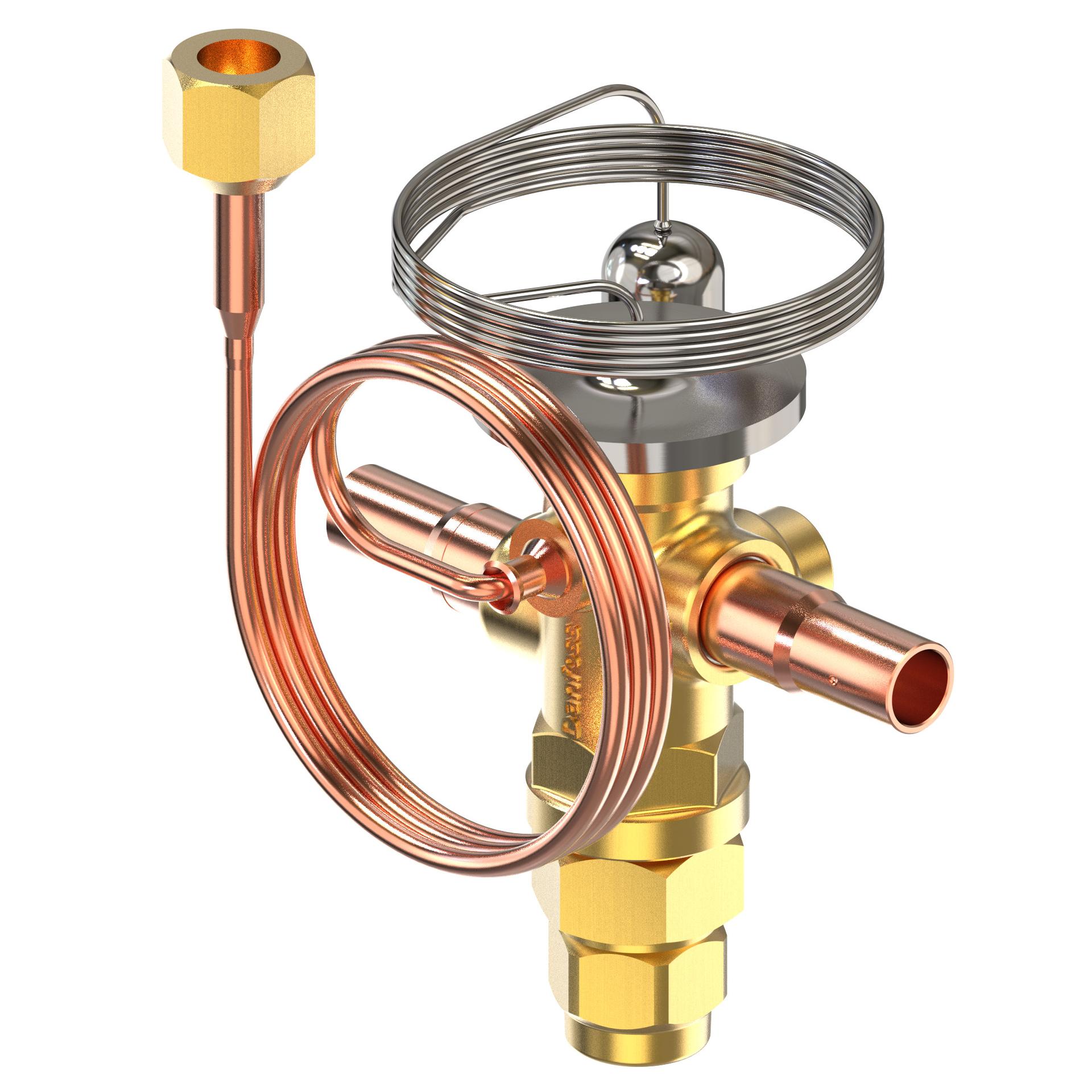

DANFOSS 067L6001 TR 6 Thermostatic Expansion Valve R454B

Product Description

The DANFOSS 067L6001 is a TR 6 thermostatic expansion valve tailored for use with R454B refrigerant. It boasts a brass body and a straightway design. This valve features an adjustable superheat setting and a balance port for enhanced performance. The solder ODF inlet and outlet are each three-eighths of an inch, and the capillary tube length measures thirty-one and a half inches.

• Compatible with R454B refrigerant
• Adjustable superheat setting
• Brass construction and balance port design

Product Highlights

The DANFOSS 067L6001 valve is designed for reliable refrigeration applications, ensuring optimal flow and efficiency.

Product Information

Standard Information

• Brand: DANFOSS
• Type: TR 6

Technical Specifications

• MPN: 067L6001
• Body Material: Brass
• Capillary Tube Length: 31.5 inches (800 mm)
• Inlet Connection Type: Solder, ODF
• Inlet Size: 3/8 inches
• Max Working Pressure: 49 bar (711 psig)
• Refrigerants: R454B
• Temperature Range Max: 15 °C (60 °F)
• Temperature Range Min: -10 °C (15 °F)
