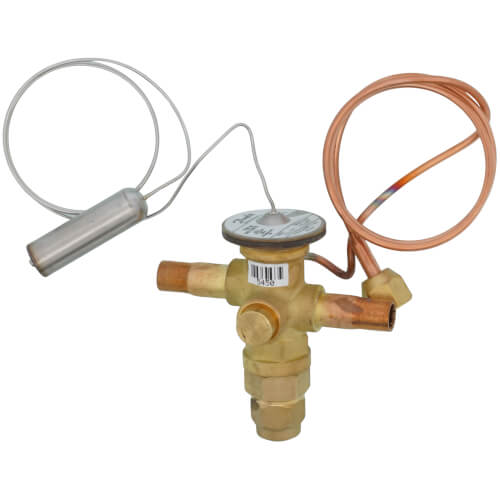

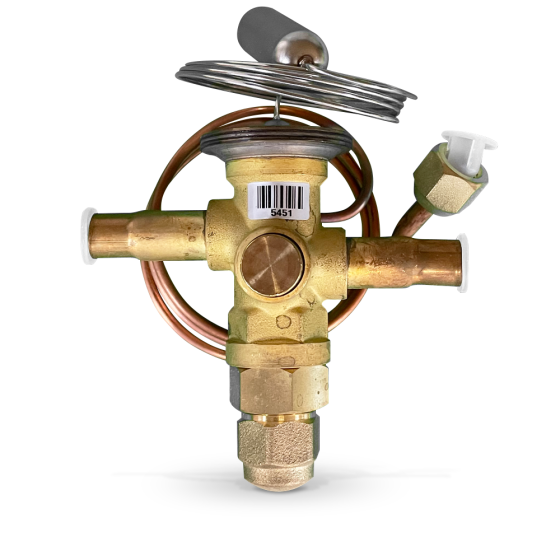

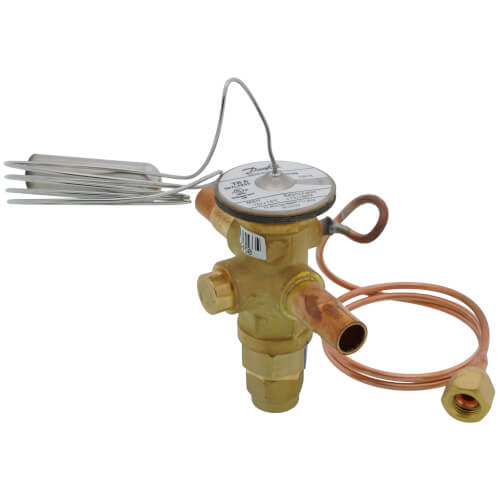

Danfoss 067L5955 3/8 Inches ODF Air Conditioning Thermal Expansion Valve 3 Ton

Product Description

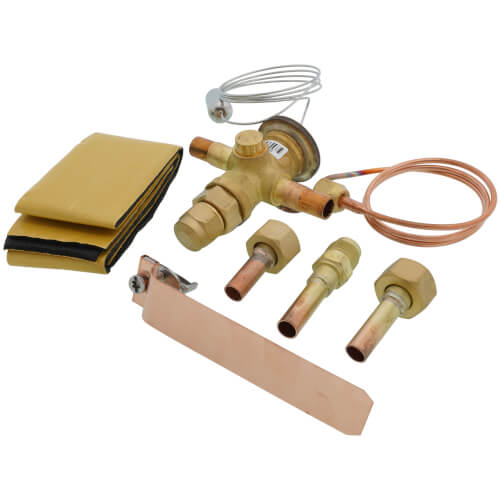

The Danfoss 067L5955 is a thermal expansion valve designed for air conditioning systems. It features a 3/8 inches ODF connection and is suitable for three ton applications using R-410A refrigerant. This unit comes with installation instructions and insulation tape.

• 3/8 inches ODF Connection
• Capacity for one point five to three tons
• Compatible with R-410A refrigerant

Product Highlights

The Danfoss 067L5955 is pivotal for managing refrigerant flow and ensuring system efficiency in HVAC setups.

Product Information

Standard Information

• Product Type: Thermal Expansion Valve
• Connection Type: ODF

Technical Specifications

• Inlet Size: 3/8 inches
• Outlet Size: 3/8 inches
• Refrigerant Type: R-410A
• Max. Working Pressure: 49 bar
• Element Temperature Max: 100 °C (212 °F)
• Capillary Tube Length: 31.5 inches
• Body Material: Brass
• Shipping Weight: 1.3 pounds
• Dimensions (L x W x H): 3.75 inches x 2.75 inches x 5 inches
