Danfoss 065B-8963 4 3-Way Cast Iron ESBE Type F Series Mixing Valve ANSI Flanged

Product Description

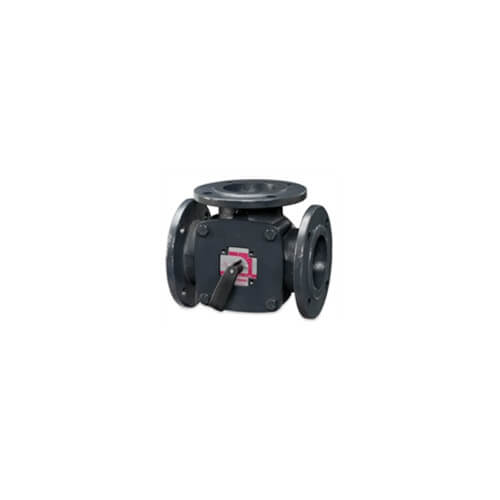

The Danfoss 4 3-Way Cast Iron ESBE Type F Series Mixing Valve, MPN 065B-8963, is built for mixing and diverting in heating and cooling systems. It manages the flow of water or non-corrosive liquids in closed-loop systems, ensuring proper distribution to multiple zones. This valve operates manually or automatically when paired with an electronic motor actuator.

• Constructed from durable cast iron with options for NPT threaded or flanged connections.
• Rotary design facilitates versatile installation and piping arrangements.
• Compatible with ESBE series 60 or 90 electric motor actuators for advanced control.

Product Highlights

This valve supports temperature control and fluid distribution, making it ideal for various applications in HVAC systems.

Product Information

Standard Information

• Type: 3-Way
• Application: Point of Source

Technical Specifications

• Max Temperature: 230 F
• Min Temperature: 14 F
• Connection Type: Flanged x Flanged
• Flow Capacity: 265 Cv
• Max Pressure: 90 PSI
• Weight: 60 lbs
• Shipping Dimensions: 14 x 14 x 10 in
• Freight Class: 65
