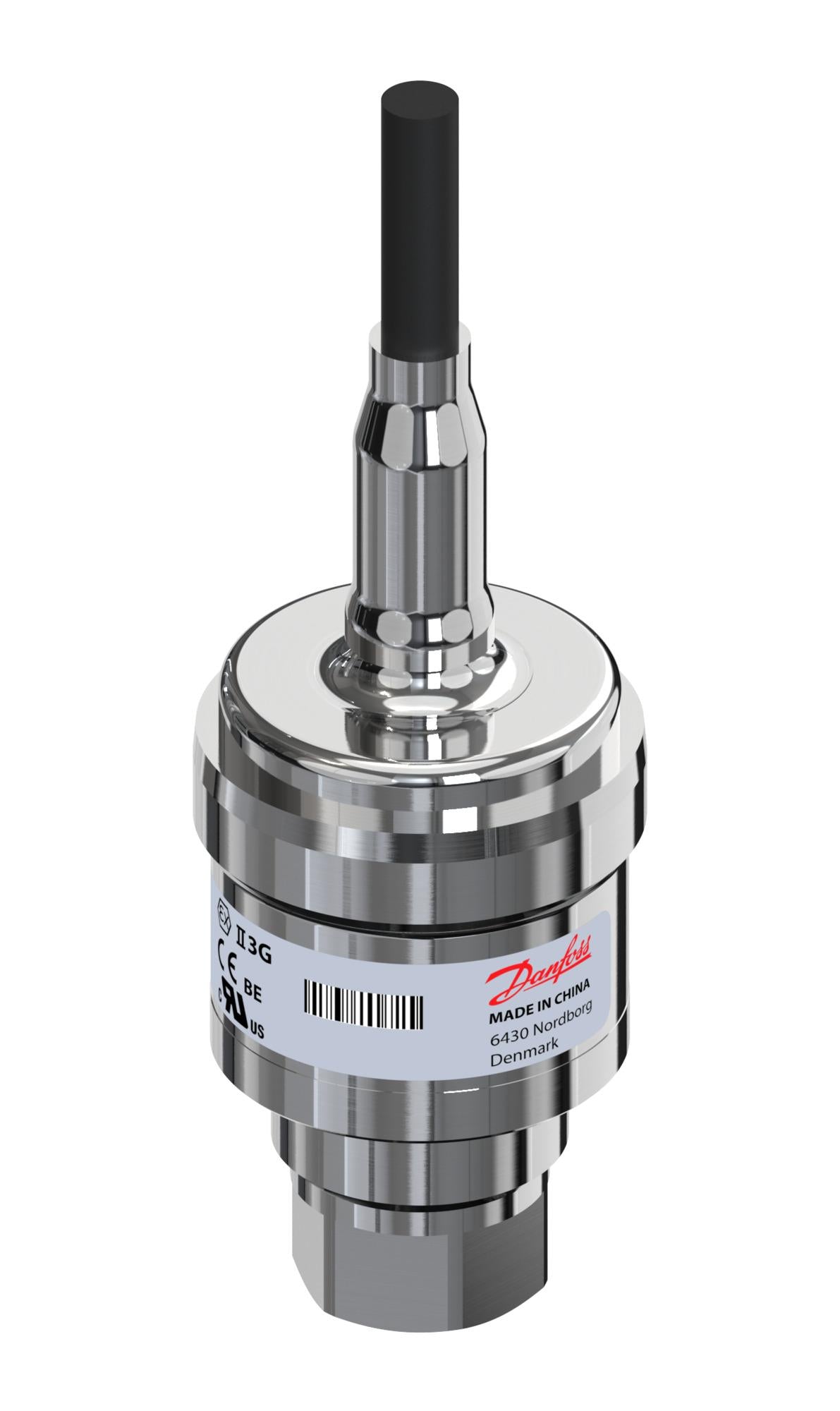

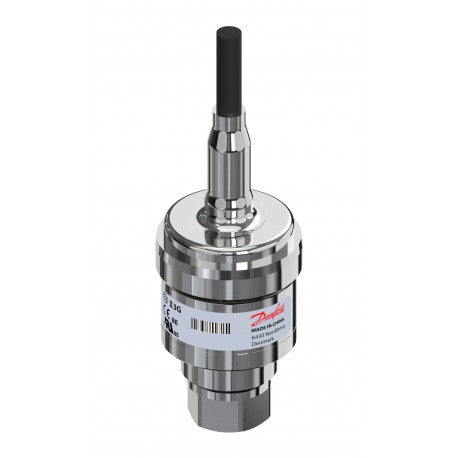

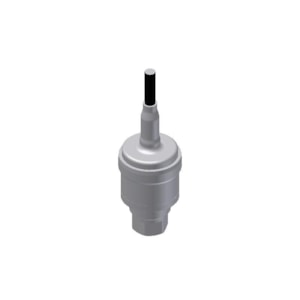

Danfoss 060G3619 AKS 3000 Pressure Transmitter

Product Description

The Danfoss 060G3619 is a pressure transmitter from the AKS 3000 series. It is designed to measure pressure from zero bar to thirty bar, which translates to zero psi to four hundred thirty-five psi. This transmitter offers a sealed gauge pressure reference and outputs a current signal, making it suitable for various applications, particularly in air conditioning and refrigeration systems.

• Pressure range: 0 to 30 bar (0 to 435 psi)
• Current output signal for reliable performance
• Cable electrical connection for easy setup

Product Highlights

This device is recognized for its robust design suited for harsh environments.

Product Information

Standard Information

• Type: AKS 3000
• Product Group: Sensors

Technical Specifications

• Pressure reference: Sealed gauge
• Output signal: Current
• Pressure connection type: UNF
• Pressure connection size: 7/16-20
• Gross weight: 0.386 kilograms
• Ambient temperature range (max): 85 °C
• Approval: ATEX, GOST POCC, CE, C UL US UL Recognized, cUR
• Enclosure rating: IP67
• Supply voltage (max): 32 V DC
• Response time max.: 4 ms
