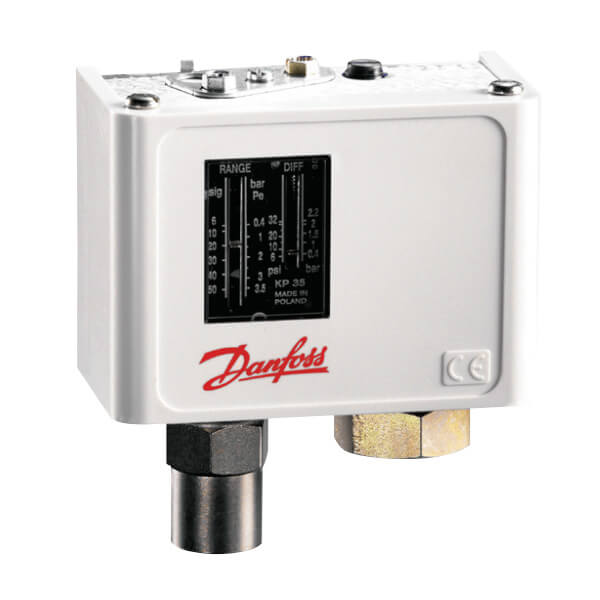

Danfoss 060-214991 KP-34 AutoReset Pressure Switch + Replacement 060-214966

Product Description

The Danfoss KP-34 AutoReset Pressure Switch, model 060-214991, is engineered for regulating, monitoring, and alarming systems in various industries. This pressure switch is applicable with steam, air, gaseous, and liquid media delivering precision and reliability.

• Automatic and manual reset options available
• Suitable for both alternating current and direct current applications
• Features a robust design with shock and impact resistance

Product Highlights

Equipped with an SPDT switch, the Danfoss KP-34 enhances system safety by providing automatic resets during fault conditions, thus minimizing downtime and maintenance. Its adjustable settings allow for precise control, accommodating a wide range of operational demands.

Product Information

Standard Information

• Brand: Danfoss
• MPN: 060-214991

Technical Specifications

• Media Temperature Range: -40 to 212 degrees Fahrenheit
• Ambient Temperature: -40 to 149 degrees Fahrenheit (up to 175 degrees Fahrenheit for short periods)
• Electrical Connectivities: Alternating current and direct current capabilities
• Pressure Connection: Nickel-plated, free-cutting steel
• Contact Load: Up to 16 A at 120 V AC; 8 A at 240 V AC
• Enclosure: NEMA ~1 rating when properly installed
