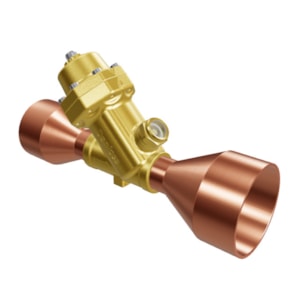

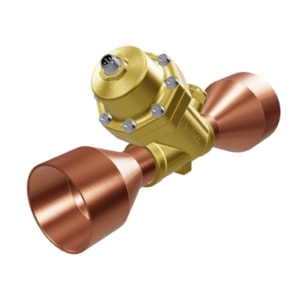

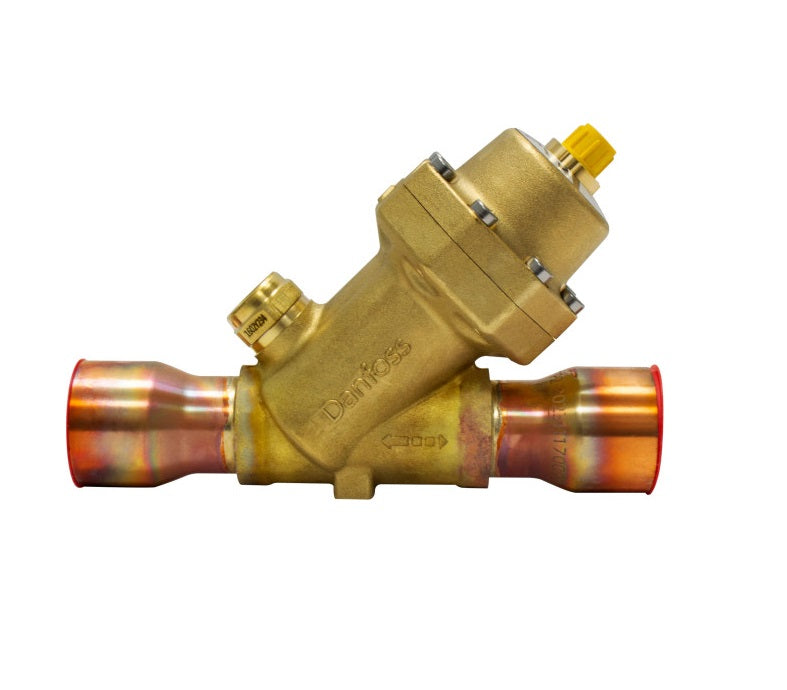

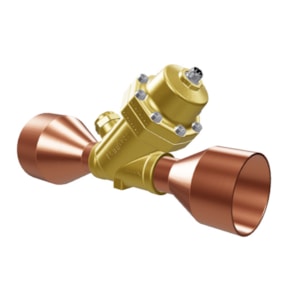

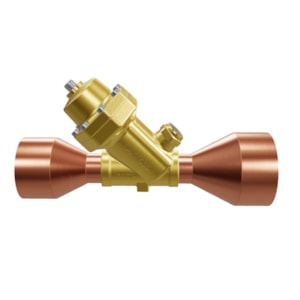

Danfoss 034G3630 Electric Expansion Valve ETS 400L (1 5/8 in)

Product Description

The Danfoss 034G3630 Electric Expansion Valve, model ETS 400L, is designed for effective control in various refrigeration systems compatible with numerous refrigerants. This valve supports a bi-flow direction for flexibility and includes a solder ODF connection with a size of one and five-eighths inches at both its inlet and outlet. It is equipped for manual operation using the AST-G service driver, ensuring usability in various maintenance scenarios.

• Compatible with a wide range of refrigerants
• Bi-flow capability
• Easy manual operation with AST-G service driver

Product Highlights

The Danfoss Electric Expansion Valve is suitable for various refrigeration applications, enabling accurate flow management and temperature control.

Product Information

Standard Information

• Ambient Temperature Range (Max): 70 °C
• Ambient Temperature Range (Min): -40 °C

Technical Specifications

• Approval: CE, UL Recognized
• Body Material: Brass
• Inlet Connection Type: Solder ODF
• Outlet Connection Type: Solder ODF
• Electrical Connection: M12, 4 pin
• Weight: 5.29 pounds
• Flow Characteristic: S-shape
• Maximum Working Pressure: 37 bar
• Type: ETS 400L
