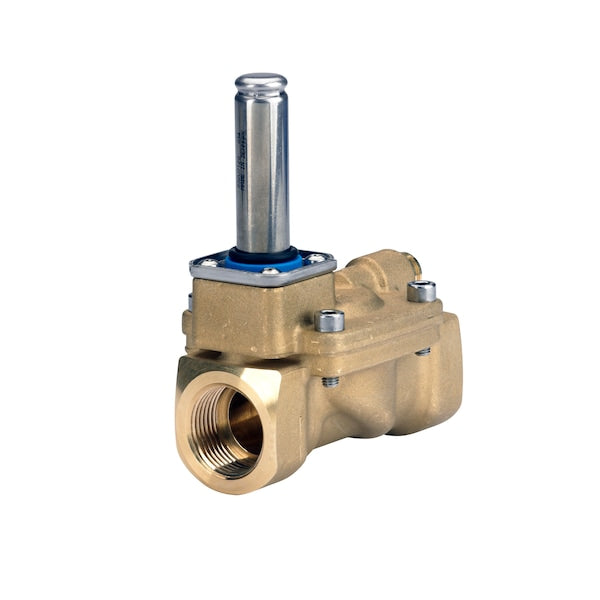

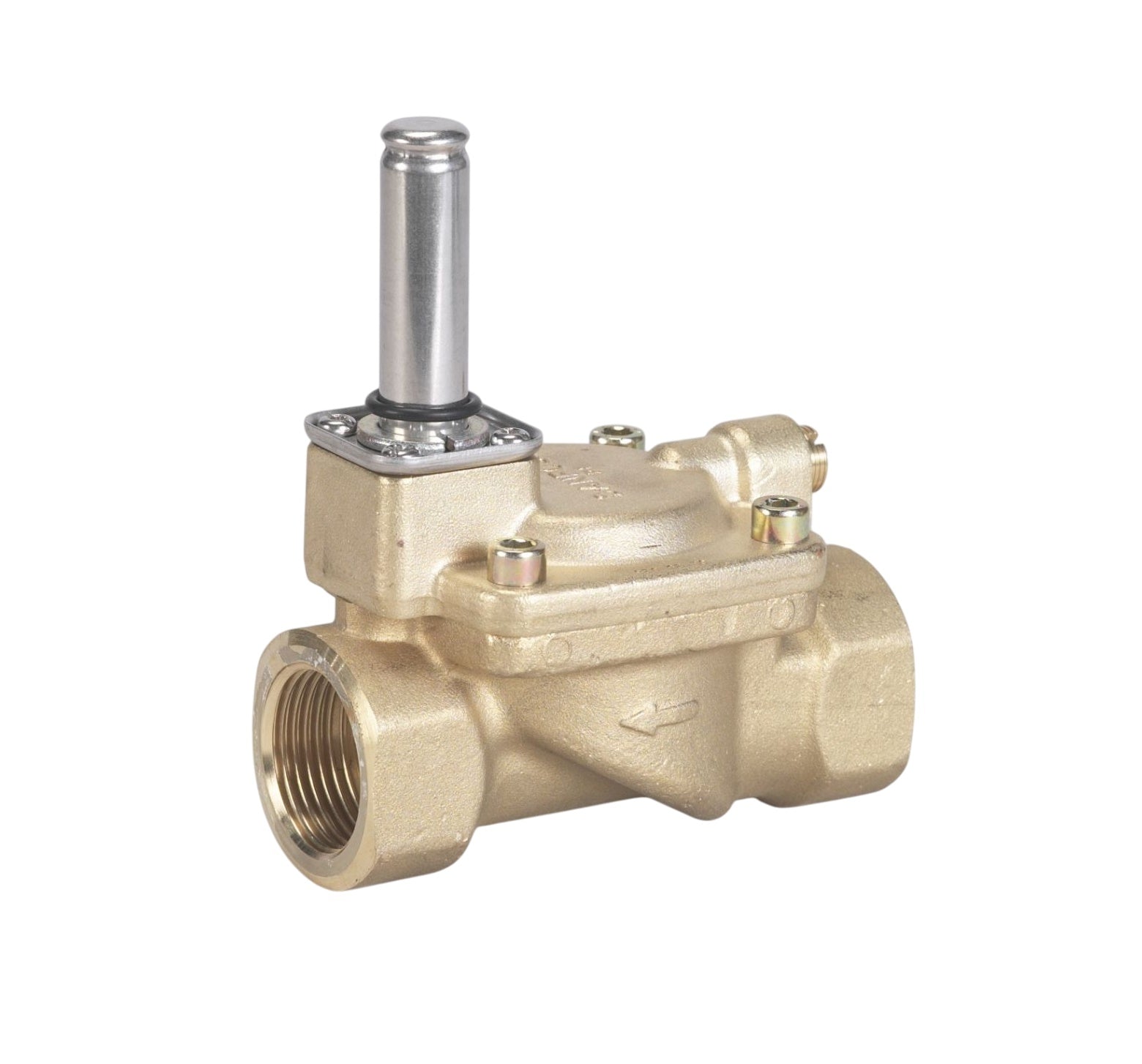

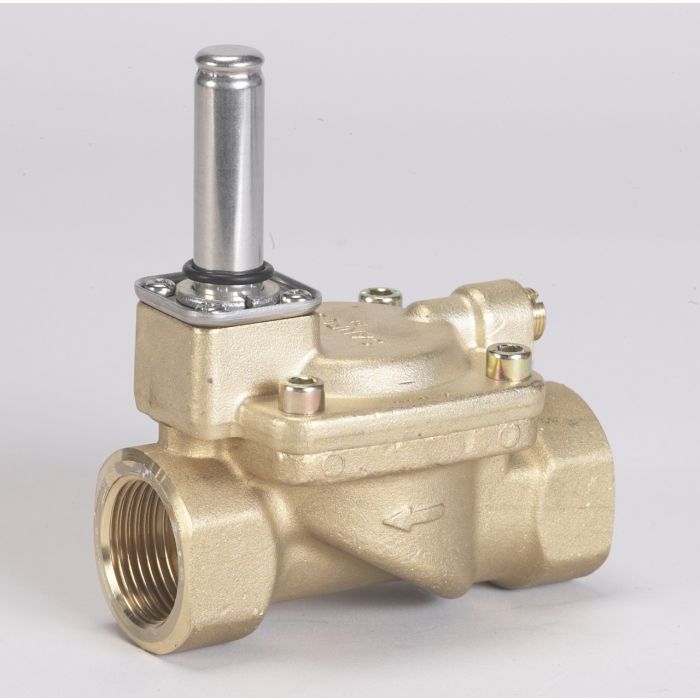

Danfoss 032U6533 Solenoid Valve 3/4 inchesNpt 9.4Cv 2W Nc Soft Close

Product Description

The Danfoss 032U6533 is a 3/4" NPT control valve with a flow capacity of 9.4 Cv and a pressure range of 0-250 psi. It is a 2-way, normally closed valve with a soft close feature. The valve is made of brass and has a stainless steel stem and is designed for use in a variety of applications, including water, air, and gas.

• 3/4" NPT connection
• Flow capacity of 9.4 Cv
• Pressure range of 0-250 psi

Product Highlights

This solenoid valve is designed for use in HVAC applications requiring shutoffs to manage refrigerant or water flow. It features a soft close to prevent water hammer and a durable construction for long life.

Product Information

Standard Information

• Brand: DANFOSS
• Manufacturer Part Number: 032U6533
• Country of Origin: Denmark

Technical Specifications

• Item Number: 032U6533
• Brand: Danfoss
• Country of Origin (subject to change) [Specifications]: Denmark
• Type: Two Way
• Product group: Solenoid valves
• Product Name Description: Solenoid valve
• Actuator: B
• Actuator size: 13.5 mm
• Actuator size [in]: 0.53 in
• Actuator system [mm]: 13.5 mm
• Ambient temperature max. [°C]: 50 °C
• Ambient temperature max. [°F]: 122 °F
• Application: Open
• Approval: C UL US LISTED
• DNVGL-CG-0339: GL
• Body material: Brass
• China RoHS compliance: Yes with exemptions
• China RoHS exemption clause: 7.3
• Connection Internal/External: Internal
• Connection material: Brass
• Connection size [in]: 3/4
• Connection standard: ANSI/ASME B1.20.1
• Connection Type: NPT
• Contains batteries: No
• Cv value [gal/min]: 9.25 gal/min
• Differential pressure [bar] [max]: 9.791 bar
• Differential pressure [bar] [min]: 0.3 bar
• Differential pressure [psi] [max]: 142 psi
• Differential pressure [psi] [min]: 4.351 psi
• EEE category: 5 small equipment (any external dimension < 50 cm)
• Est. time to open, water [ms]: 40 ms
• EU RoHS compliance: Yes with exemptions
• EU RoHS exemption clause: 6(c)
• Flow direction: Single-flow
• Flow direction indicator: Embossed 1-way arrow
• Fluid Group: 1
• Function: NC
• In scope of WEEE: Yes
• Kv value [m³/h]: 8 m³/h
• Max media viscosity [cSt]: 50 cSt
• Max. test pressure [bar]: 20 bar
• Max. test pressure [psig]: 290 psig
• Max. Working Pressure [bar]: 15.5 bar
• Max. Working Pressure [psig]: 225 psig
• Media recommendations: Water & Brine
• Media tolerance comments: Neutral media
• Steam Max 4 bar: Temperature: Coil dependent
• Medium temperature range [°C] [max]: 120 °C
• Medium temperature range [°C] [min]: -10 °C
• Medium temperature range [°F] [max]: 248 °F
• Medium temperature range [°F] [min]: 14 °F
• Number of ways: 2/2
• Open/close equalizing orifice: Optional Equalization orifice
• Operation: Servo-operated (diaphragm)
• Orifice size [mm]: 20 mm
• Orifice size fraction [in]: 3/4 in
• Packing format: Multi pack
• Parts Program name: EV220B 15 - 50
• Product accessories: Solenoid valve accessories
• Quantity per packing format: 12 pc
• REACH Candidate List substances: Lead (CAS no. 7439-92-1)
• SCIP dossier no.: b8af40bc-3f7f-4177-bd55-c3503cccfc04
• SCIP dossier product name: EV220B 15-50 brass NC - solenoid valve
• Seal Material: EPDM
• Serviceable: Solenoid valve spare parts
• Specification key: EV220B 20B N 34E NC000
• Type designation: EV220B 20
• UL mark: Yes
• Max Media Temperature: 248 °F
• Connection: NPT
• Sensor Type: Two Way
• Valve Type: Pilot
• Valve Operation: Normally Closed
• Orifice Size: 3/4 in
• Approvals: UL
• Cv: 9.25
• Pipe Size: 3/4 in
• Wetted Materials: Brass, EPDM
• Pressure Range: 4.351 - 142 PSI
• UNSPSC Code: 27130000
• Coil Voltage: Purchase Coil Separately V
• Configuration: NC
• Manufacturer Part Number: 032U6533
• Number of Ports: 2
• Series: EV220B 50/15 Series
• Thread Type: NPT
• Unit of Measure: EA
• Weight: 2.12 lbs
• Material: Brass
• Connection Size: 3/4"
• Function N/C: Normally Closed
• Model: Danfoss 032U6533
• Category: HVAC & Refrigeration Valves
• Manufacturer: Danfoss, Inc.
• Product Type: SOLENOID VALVE
• Vendor Item: 032U6533
• Vendor Short Name: DANFOS
