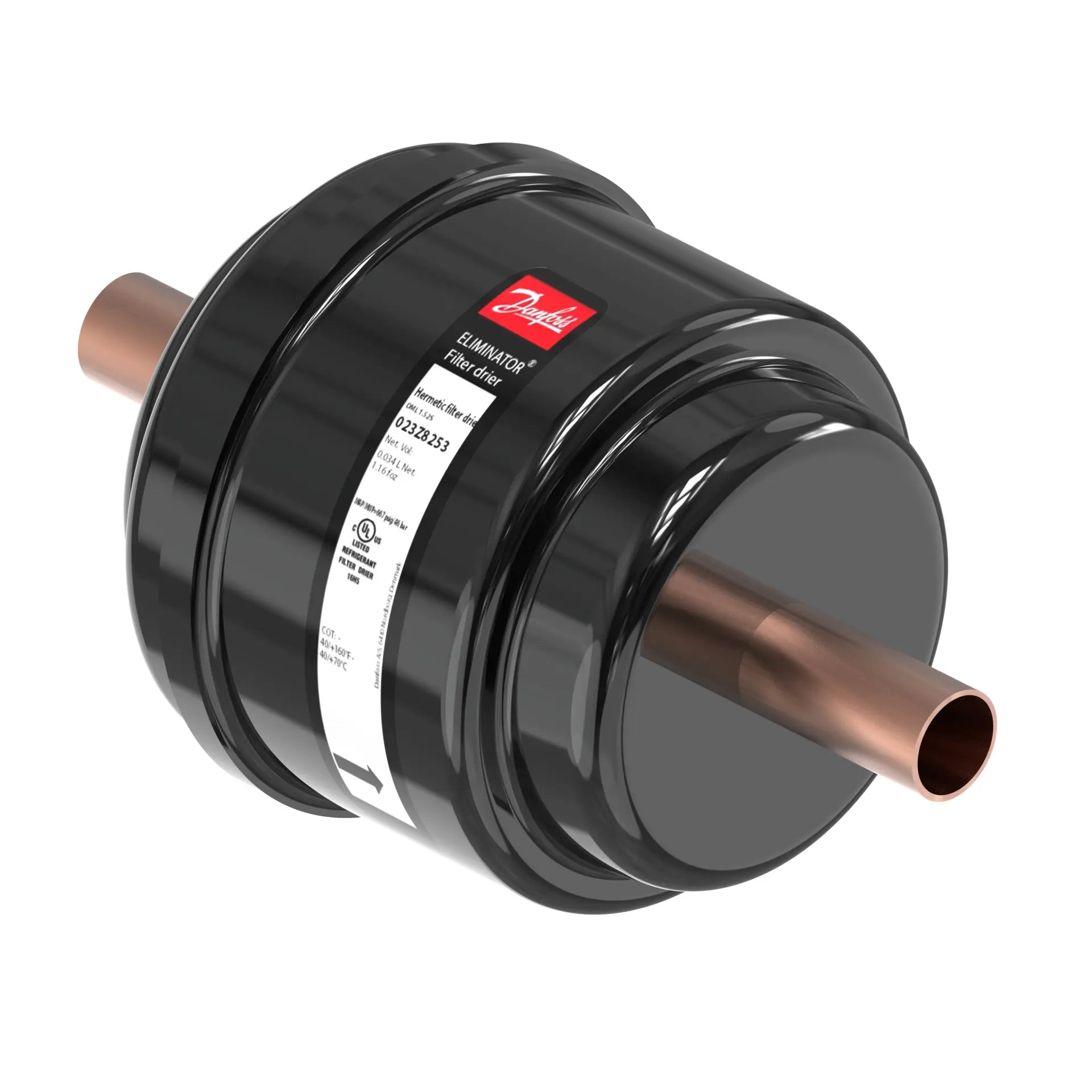

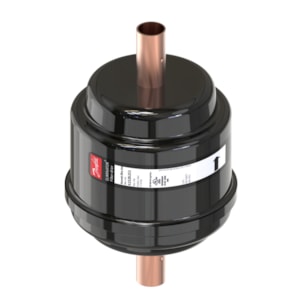

Danfoss 023Z5069 Hermetic Filter Drier DML 16 Cu.in. (12 Pack)

Product Description

The Danfoss 023Z5069 hermetic filter drier is designed to remove moisture and impurities from refrigeration and air conditioning systems. It features solder and ODF connection types and has a core size of sixteen cubic inches. This filter drier is available in a quantity of twelve per pack, making it suitable for large projects. It is essential for maintaining efficiency and extending the lifespan of HVAC systems.

• Inlet and outlet connection types: Solder, ODF
• Core size: sixteen cubic inches
• Multi-pack quantity: twelve pieces

Product Highlights

This filter drier supports high moisture capacity, ensuring optimal functionality in cooling systems.

Product Information

Standard Information

• Brand: Danfoss
• Approval: UL

Technical Specifications

• Acid capacity: 1.2 g (0.042 oz)
• Body material: Steel
• Max. working pressure: 46 bar (667 psig)
• Net volume: 0.226 L (7.63 Fluid Ounce US)
• Temperature range (max): 70 °C (160 °F)
• Temperature range (min): -40 °C (-40 °F)
• Flow capacity: R134a: 48.3 kW, R290: 58.2 kW
• Connection sizes: 7/8 in for both inlet and outlet
