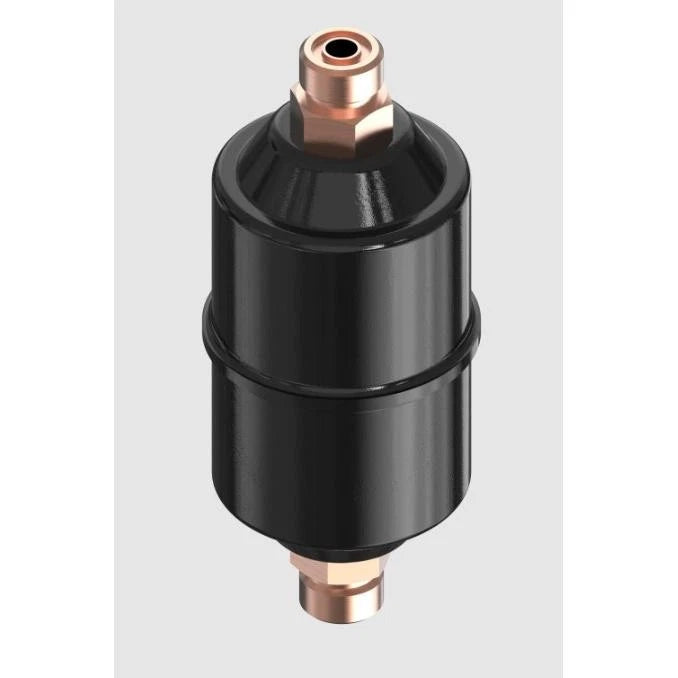

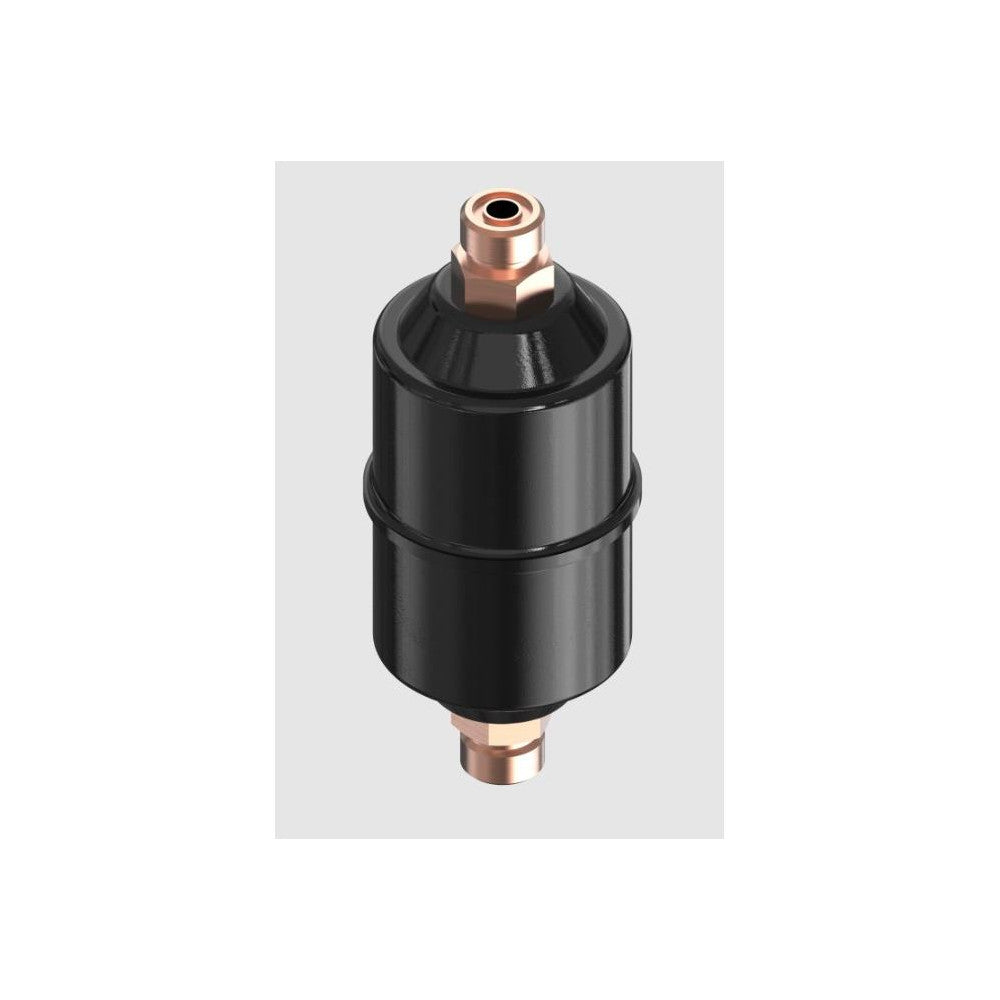

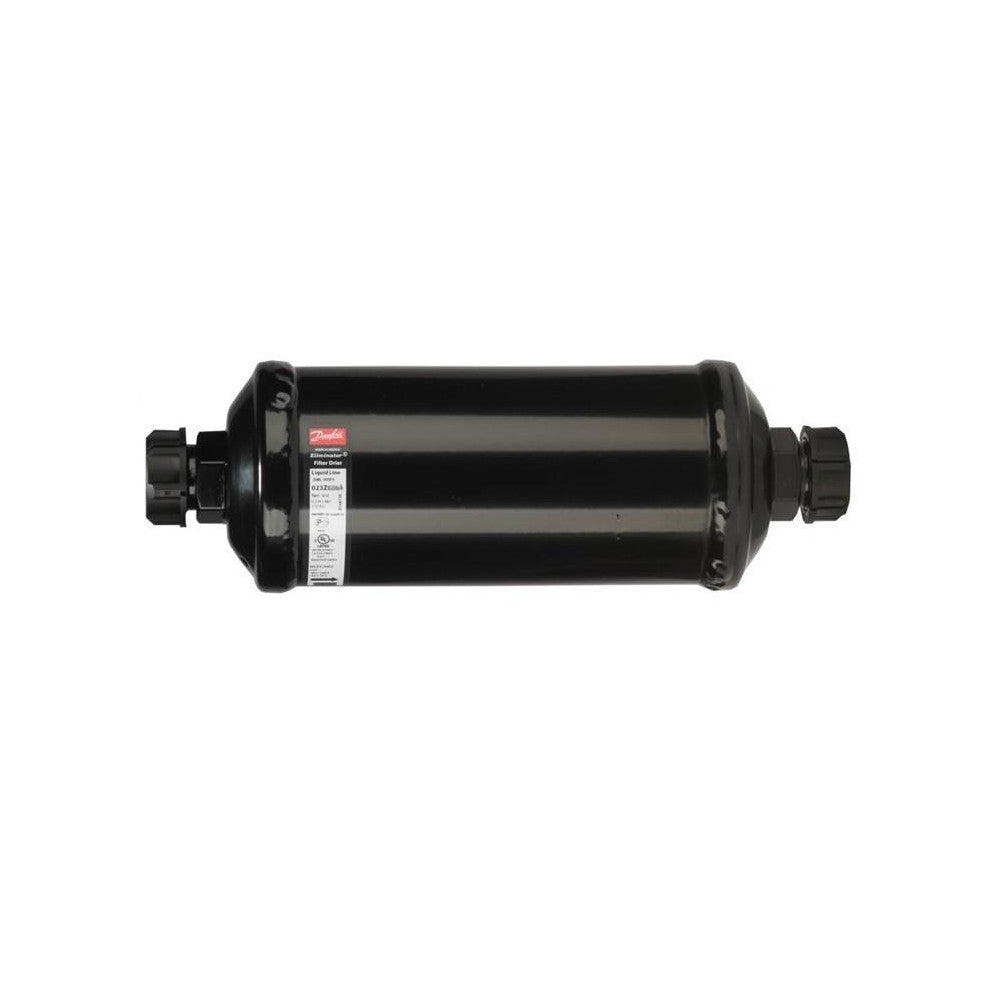

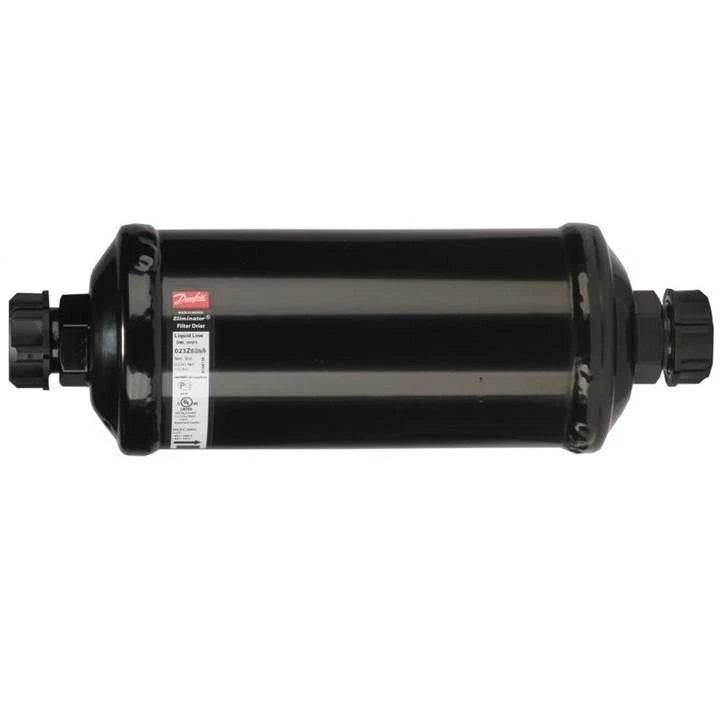

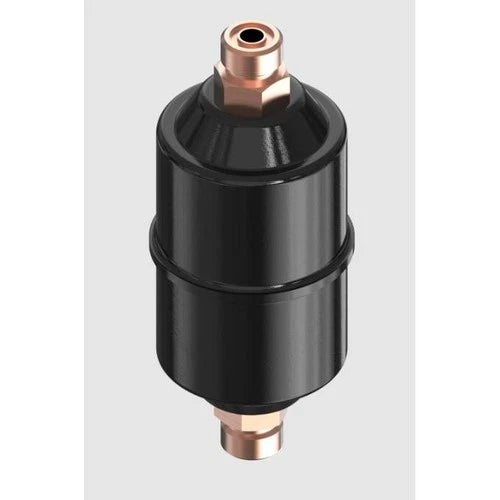

Danfoss 023Z1323 Filter Drier DCL Steel 3/8 in Face Seal

Product Description

The Danfoss 023Z1323 is a hermetic filter drier crafted for liquid lines. This unit features a solid core made with eighty percent molecular sieve and twenty percent activated alumina, housed in a robust steel body. It is specifically designed to handle standard moisture and acid capacity needs. The filter is compatible with various oil-free refrigerants. An important aspect is the label indicating the flow direction with a one-way arrow.

• Solid core construction with molecular sieve and activated alumina
• Designed for standard moisture and acid capacity
• Suitable for oil-free refrigerants

Product Highlights

This filter drier is essential for maintaining refrigeration systems by ensuring low moisture and acid levels, extending the life and efficiency of HVAC systems.

Product Information

Standard Information

• Brand: Danfoss
• MPN: 023Z1323

Technical Specifications

• Type: DCL
• Body Material: Steel
• Inlet Connection Size: 3/8 in
• Outlet Connection Size: 3/8 in
• Refrigerants: R1233zd(E), R1234yf, R134a, and others
• Max Working Pressure: 46 bar
• Operating Temperature (Min): -40 °F
• Operating Temperature (Max): 160 °F
• Acid Capacity: 1.38 g
• Molecular Sieve: 80%
• Activated Alumina: 20%
• Flow Direction Indicator: Label printed 1-way arrow
• Length: 158 mm
• Diameter: 54 mm
• Weight: 2.83 lb
