Danfoss 009G8068 1-5/8 x 1-5/8 ODF Soldered x ODF Soldered 650 PSI Replacement MPN

Product Description

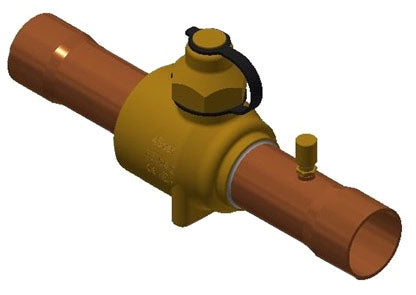

The Danfoss 009G8068 is a ball valve designed for HVAC applications. It features a nominal size of one and five eighths inches by one and five eighths inches with ODF soldered connections. This valve is suitable for refrigeration and air conditioning systems.

• Rated for a pressure of six hundred fifty PSI working and nine hundred forty PSI test
• Constructed from stainless steel and brass materials
• Temperature rating ranges from negative forty to three hundred degrees Fahrenheit

Product Highlights

Reliable valve for bi-flow applications with straightforward installation and robust materials.

Product Information

Standard Information

• Brand: Danfoss
• MPN: 009G8068

Technical Specifications

• Nominal Size: 1-5/8 inch x 1-5/8 inch
• End Connection: ODF Soldered x ODF Soldered
• End to End Distance: 5.9 inches
• Ball Material: Stainless Steel
• Body Material: Brass
• Seat Material: PTFE
• Temperature Rating: -40 to 300 degrees Fahrenheit
• Pressure Rating: 650 PSI (Working), 940 PSI (Test)
• Inclusions/Features: Access Port, Copper Extension Tube, Valve Tail, Double O-Ring Seal in Spindle, Seal Cap, Spindle, Pin, Access Port Cap, Guide Ring, Valve Core
• Applicable Standard: UL (Canada and US), CE
• Refrigerant Types: R-134A, R-22/R-407C, R-290, R-404A/R-507, R-407A, R-407F, R-407H, R-410A, R-448A, R-449A, R-449B, R-450A, R-452A, R-452B, R-454A, R-454B, R-454C, R-455A, R-513A, R-515B, R-516A, R1234ze(E), R1234yf
• Cv Value: 155.78 Gallon per Minute
• Kv Value: 134.76 Cubic Meter per Hour
