Product Description

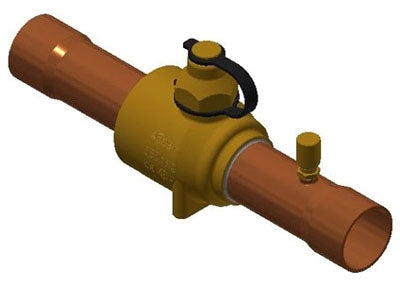

The Danfoss 009G8067 is a shut-off ball valve designed for refrigeration and air conditioning systems. This valve features a nominal size of one and three-eighths inches by one and three-eighths inches and connects using ODF soldered fittings. With a pressure rating of six hundred fifty PSI working pressure and nine hundred forty PSI for testing, this unit is suitable for various refrigerants including R-134A and R-410A.
- Durable brass body and stainless steel ball
- Temperature range from negative forty to three hundred degrees Fahrenheit
- Includes access port for service convenience
Product Highlights
The Danfoss 009G8067 ball valve is reliable for managing flow in HVAC applications due to its bi-directional flow capability and minimal pressure drop.
Product Information
Standard Information
-
Manufacturer: Danfoss
-
UPC: 5702428866569
Technical Specifications
-
Ball Material: Stainless Steel
-
Body Material: Brass
-
Seat Material: PTFE
-
End Connection: ODF Soldered x ODF Soldered
-
Nominal Size: 1-3/8 Inch x 1-3/8 Inch
-
End to End Distance: 5.4 Inch
-
Pressure Rating: 650 PSI (Working), 940 PSI (Test)
-
Temperature Rating: -40 to 300 Deg F
-
Inclusions/Features: Access Port, Copper Extension Tube, Valve Tail, Double O-Ring Seal, Valve Core
-
Applicable Standard: UL (Canada and US), CE
