Product Description

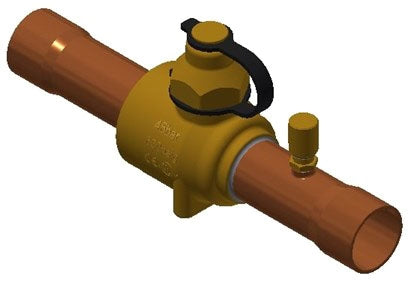

The Danfoss 009G8066 is a reliable ball valve designed for refrigeration and air conditioning systems. This valve features ODF soldered connections on both ends and is rated for a working pressure of six hundred fifty psi. It utilizes a stainless steel ball and a brass body, ensuring durability and consistent performance in various applications.
- Nominal size is one and one-eighth inches by one and one-eighth inches
- Temperature rating from negative forty to three hundred degrees Fahrenheit
- Includes access port for service and maintenance
Product Highlights
This ball valve is suitable for bi-directional flow and features a double O-ring seal design for safe operation. It is also laser welded for enhanced reliability.
Product Information
Standard Information
-
Manufacturer: Danfoss
-
Part Number: 009G8066
Technical Specifications
-
Nominal Size: 1-1/8 inch x 1-1/8 inch
-
End Connection: ODF Soldered x ODF Soldered
-
End to End Distance: 4.4 inches
-
Ball Material: Stainless Steel
-
Body Material: Brass
-
Seat Material: PTFE
-
Temperature Rating: -40 to 300 degrees Fahrenheit
-
Pressure Rating: 650 PSI (Working), 940 PSI (Test)
-
Applicable Standards: UL (Canada and US), CE
-
Cv Value: 71.96 Gallon per Minute
-
Kv Value: 62.25 Cubic Meter per Hour
