DANFOSS 009G8065 PIPE FITTINGS
DANFOSS Danfoss 009G8065 7/8 x 7/8, ODF Soldered x ODF Soldered, 650 PSI, Stainless Steel Ball, Brass Body, Straightway, Bi-Flow, Shut-Off, Ball Valve
DANFOSS 009G8065 PIPE FITTINGS
Danfoss 009G8065 7/8 x 7/8, ODF Soldered x ODF Soldered, 650 PSI, Stainless Steel Ball, Brass Body, Straightway, Bi-Flow, Shut-Off, Ball Valve

Danfoss 009G8065 7/8 x 7/8, ODF Soldered x ODF Soldered, 650 PSI, Stainless Steel Ball, Brass Body, Straightway, Bi-Flow, Shut-Off, Ball Valve

DANFOSS
Brand: DANFOSS
SKU: 009G8065
Availability: In Stock

Ships same day if ordered by 12 pm
$78.84
$78.84
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

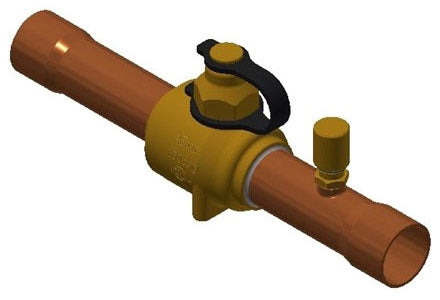

The Danfoss 009G8065 is a bi-flow ball valve designed for refrigeration and air conditioning systems. Its nominal size is seven-eighths inch by seven-eighths inch with ODF soldered connections.

  • Temperature rating from minus forty to three hundred degrees Fahrenheit
  • Pressure ratings of six hundred fifty PSI working and nine hundred forty PSI test
  • Includes access port and multiple features for easy service

Product Highlights

This valve offers full flow with minimal pressure drop and a ball status indicator for easy operation.

Product Information

Standard Information

  • Manufacturer: Danfoss
  • UPC: 5702428866583
Technical Specifications
End Connection
ODF Soldered x ODF Soldered

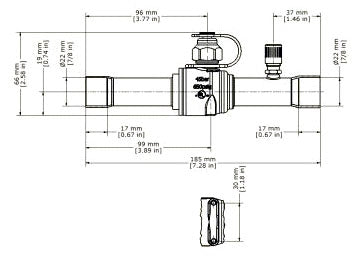

End to End Distance
three point nine inches
Ball Material
Stainless Steel
Body Material
Brass
Seat Material
PTFE
Type
Shut-Off, Bi-Flow, Straightway
Inclusions/Features
Access Port, Copper Extension Tube, Valve Tail, Double O-Ring Seal in Spindle, Seal Cap, Spindle, Pin, Access Port Cap, Guide Ring, Valve Core
Applicable Standard
UL (Canada and US), CE
Refrigerant Types
R-134A, R-22/R-407C, R-290, R-404A/R-507, R-407A, R-407F, R-407H, R-410A, R-448A, R-449A, R-449B, R-450A, R-452A, R-452B, R-454A, R-454B, R-454C, R-455A, R-513A, R-515B, R-516A, R-1234ze(E), R-1234yf
Cv Value
thirty-eight point fifty-four gallon per minute
Kv Value
thirty-three point thirty-four cubic meter per hour
