Danfoss 009G8054 3/4 x 3/4, ODF Soldered x ODF Soldered, 650 PSI, Stainless Steel Ball, Brass Body, Straightway, Bi-Flow, Shut-Off, Ball Valve

Product Description

The Danfoss 009G8054 is a ball valve designed for refrigeration and air conditioning systems. Its nominal size is three fourths by three fourths inches. This valve uses ODF soldered connections and is rated for a working pressure of six hundred fifty PSI.

• Type: Shut-Off, Bi-Flow, Straightway
• Temperature Range: -40 to 300 degrees Fahrenheit
• Pressure Rating: 650 PSI working, 940 PSI test

Product Highlights

This valve features a stainless steel ball and a brass body. It includes an access port and uses PTFE as its seat material. Ideal for HVAC applications, it is suitable for various refrigerant types.

Product Information

Standard Information

• Manufacturer: Danfoss
• UPC: 84097400018

Technical Specifications

• Ball Material: Stainless Steel
• Body Material: Brass
• Seat Material: PTFE
• End Connection: ODF Soldered x ODF Soldered

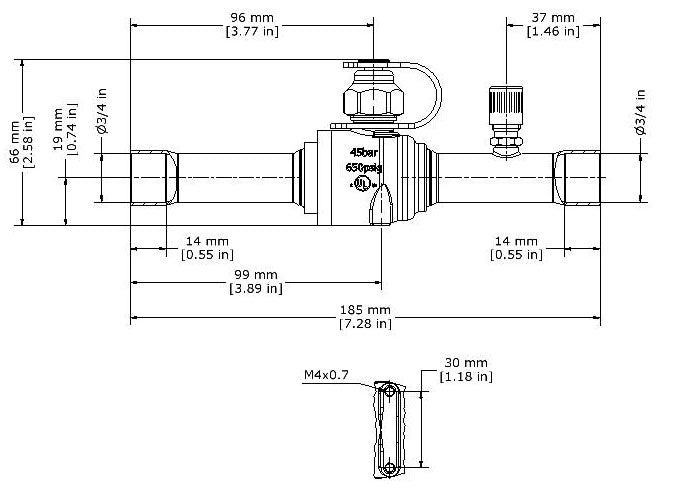

• End to End Distance: 3.9 inches
• Inclusions/Features: Access Port, Copper Extension Tube, Valve Tail, Double O-Ring Seal in Spindle, Seal Cap, Spindle, Pin, Access Port Cap, Guide Ring, Valve Core
• Refrigerant Types: R-134A, R-22/R-407C, R-290, R-404A/R-507, R-407A, R-407F, R-407H, R-410A, and more
• Cv Value: 25.35 Gallon per Minute
• Kv Value: 21.93 Cubic Meter per Hour
• Applicable Standard: UL (Canada and US), CE
