Product Description
Danfoss 009G8054 Ball Valve is a reliable and durable solution for HVAC systems. This straightway, bi-flow ball valve features a 3/4 inch x 3/4 inch ODF soldered connection and a stainless steel ball within a brass body capable of withstanding a pressure rating up to 650 PSI.
- 3/4 inch x 3/4 inch ODF soldered connection
- 650 PSI pressure rating
- Stainless steel ball and brass body
Product Highlights
Designed for refrigeration and air conditioning systems, this valve ensures efficient bi-directional flow with minimal pressure drop. The temperature range extends from -40 to 300 degrees Fahrenheit, making it suitable for various HVAC applications.
Product Information
Standard Information
-
Manufacturer: Danfoss
-
Part Number: 009G8054
-
UPC: 84097400018
-
UNSPSC: 40141607

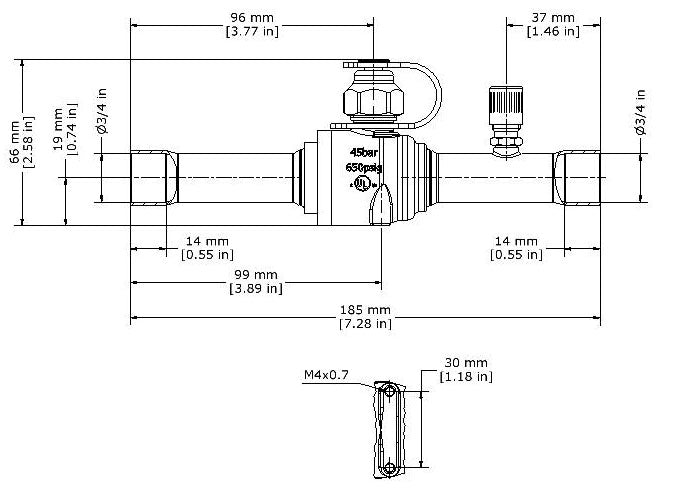

Technical Specifications
-
Type: Shut-Off, Bi-Flow, Straightway
-
Nominal Size: 3/4 inch x 3/4 inch
-
End Connection: ODF Soldered x ODF Soldered
-
End to End Distance: 3.9 inches
-
Ball Material: Stainless Steel
-
Body Material: Brass
-
Seat Material: PTFE
-
Temperature Rating: -40 to 300 degrees Fahrenheit
-
Pressure Rating: 650 PSI (working), 940 PSI (test)
-
Inclusions/Features: Access Port, Copper Extension Tube, Valve Tail, Double O-Ring Seal in Spindle, Seal Cap, Spindle, Pin, Access Port Cap, Guide Ring, Valve Core
-
Application: Refrigeration and Air Conditioning System
-
Applicable Standard: UL (Canada and US), CE
-
Refrigerant Type: R-134A, R-22/R-407C, R-290, R-404A/R-507, R-407A, R-407F, R-407H, R-410A, R-448A, R-449A, R-449B, R-450A, R-452A, R-452B, R-454A, R-454B, R-454C, R-455A, R-513A, R-515B, R-516A, R1234ze(E), R1234yf
-
Cv Value: 25.35 gallons per minute
-
Kv Value: 21.93 cubic meters per hour
