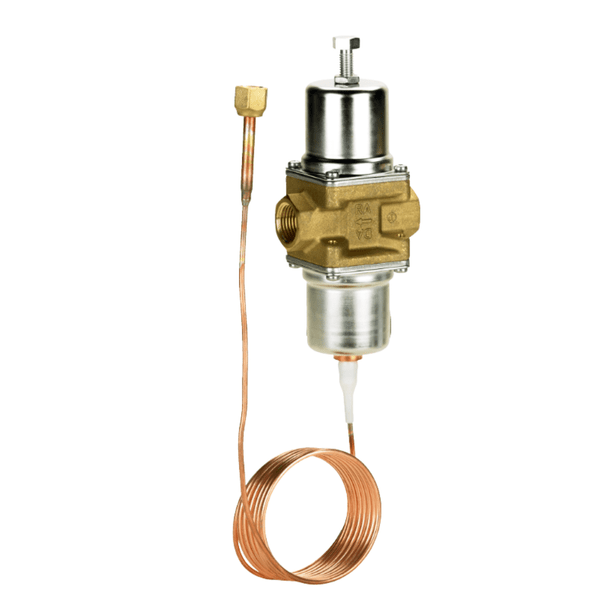

Danfoss 003N8036 Pressure Operated Water Valve WVO 15 14 Bar 18 Bar

Product Description

The Danfoss 003N8036 is a pressure-operated water valve designed for precise control between fourteen bar and eighteen bar. This valve features a Kv value of one point nine cubic meters per hour, suitable for applications requiring stable flow rates.

• Connection type: NPT.
• Body material: Brass.
• Suitable for fresh water and neutral brine.

Product Highlights

The valve is designed to operate efficiently and opens in response to rising condensing pressure.

Product Information

Standard Information

• Approval: C UL US LISTED, EAC, LLC CDC TYSK, PED, RoHS.
• Connection size: 1/2-14.

Technical Specifications

• Control pressure range (max): 18 bar.
• Control pressure range (min): 14 bar.
• Max. Working Pressure: 16 bar.
• Media: Fresh water, neutral brine.
• Medium temperature range (max): 130 °C.
• Medium temperature range (min): -25 °C.
• Orifice size: 15 mm.
• Lubricants compatibility: Oilfree applications.
