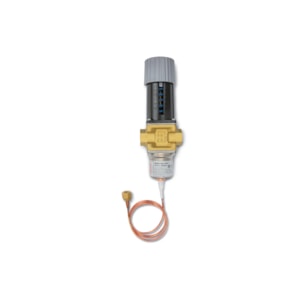

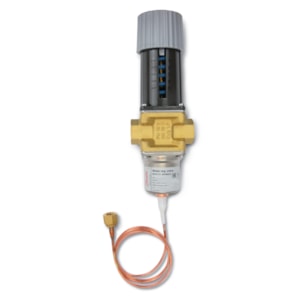

Danfoss 003N4104 Pressure Operated Water Valve WVFX 25 4 Bar - 23 Bar

Product Description

The Danfoss 003N4104 pressure operated water valve, WVFX 25, is designed to control the flow of water in systems such as condensers and heat exchangers. This valve functions without requiring external power, making it efficient and reliable for various applications. Its G 1 connection and Kv value of 5.5 m³/h enable effective flow regulation. The valve activates with rising condensing pressure within a range of 4 bar to 23 bar.

• Self-acting water valve
• Regulates water flow in condenser and heat exchanger systems
• Maintains constant condensing or evaporating pressure

Product Highlights

The Danfoss 003N4104 is suitable for fresh water, neutral brine, and sea water, providing versatility in different environments.

Product Information

Standard Information

• Valve Type: WVFX 25
• Connection Type: G

Technical Specifications

• Connection Size: 1 inch
• Kv Value: 5.5 m³/h
• Opening Configuration: Opens on rising condensing pressure
• Control Pressure Range: 4 - 23 bar
• Body Material: Stainless steel
• Max Working Pressure: 16 bar
• Media Types: Fresh water, Neutral brine, Sea water
• Temperature Range: -25 °C to 130 °C
• Orifice Size: 25 mm (1 inch)
