Product Description

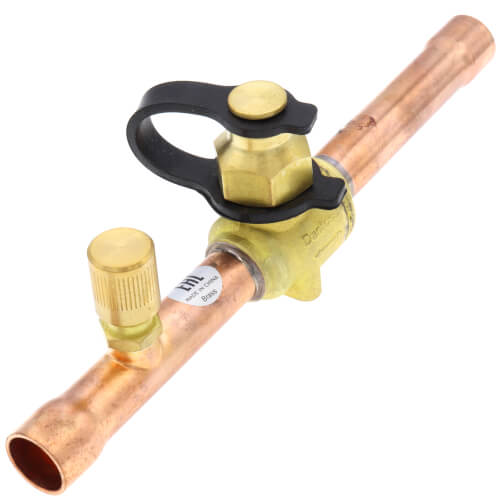

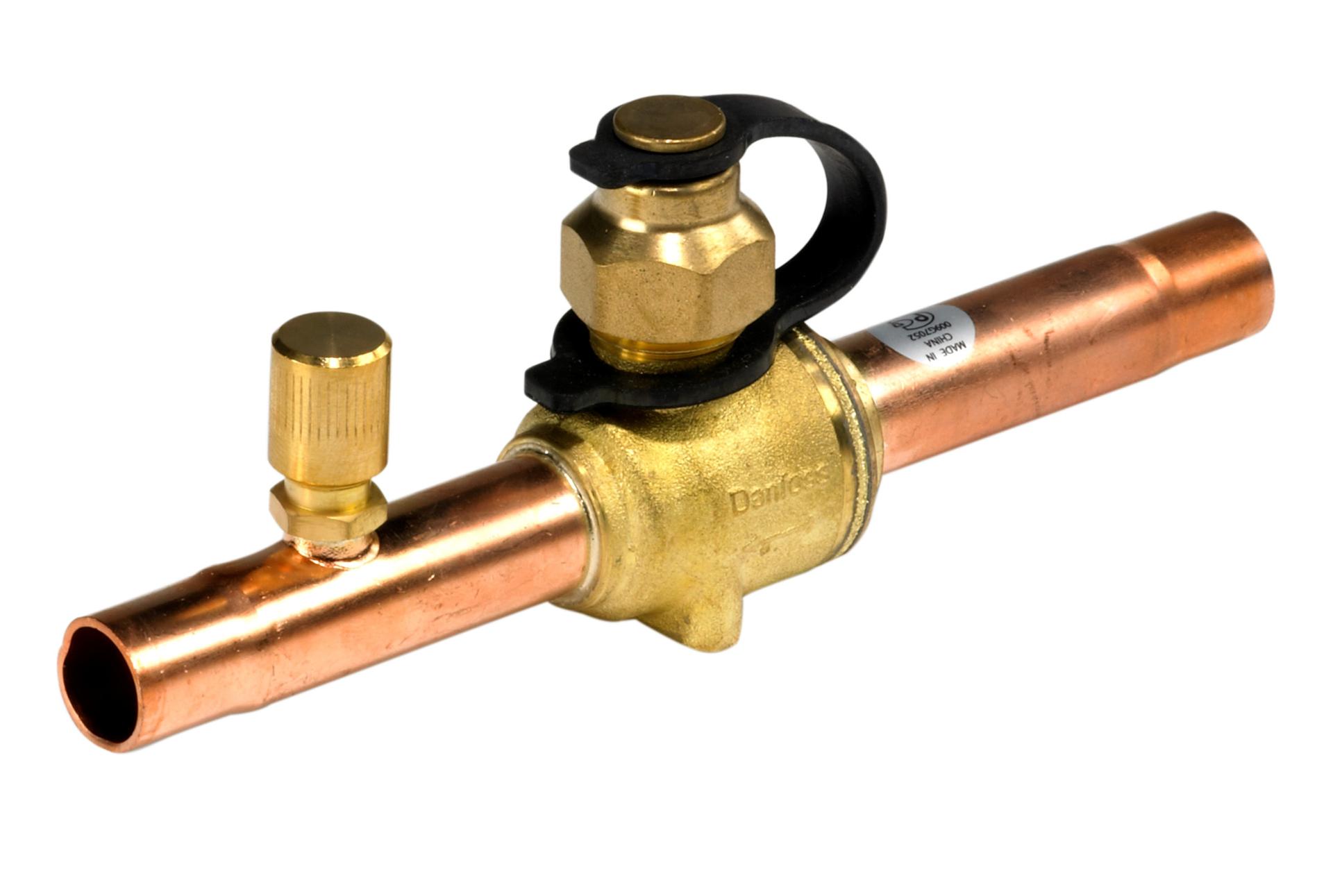

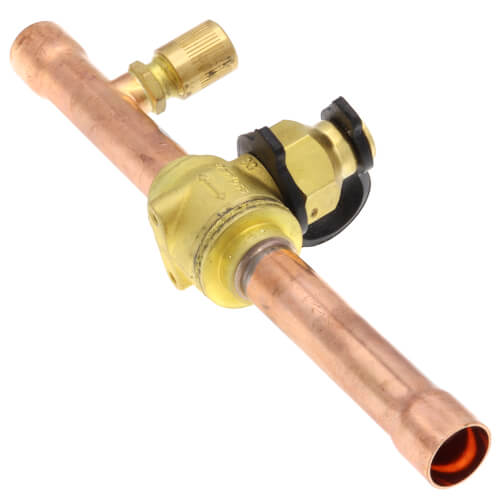

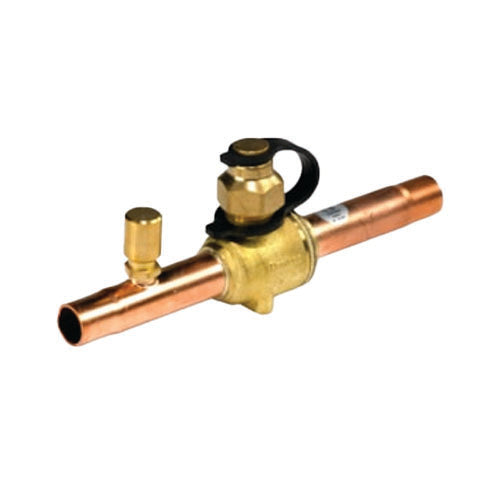

The DANFLOSS 009L8052 1/2" Refrig Ball Valve W/ Access Port features a burst-proof spindle that prevents liquids from being trapped internally. The valve seat secures maximum tightness and includes a seal cap with retaining strap. It is approved for R410A and provides tight shut-off and minimal pressure drop.
- 1/2" ODF Connection
- Brass construction
- 650 MAX PSI
Product Highlights
This refrigeration ball valve is designed for precise control of refrigerant flow in HVAC and refrigeration systems. Features a compact, serviceable design with a built-in access port for easy system maintenance.
Product Information
Standard Information
-
Brand: DANFLOSS
-
Manufacturer Part Number: 009L8052
Technical Specifications
-
Product Type: Ball Valve
-
Size: 1/2"
-
Connection Type: ODF
-
Max Pressure (PSI): 650
-
Material: Brass
-
Access port: Yes
-
Approval: C UL US LISTED
-
Body material: Brass
-
CE mark: Yes
-
China RoHS compliance: Yes with exemptions
-
Connection material: Copper
-
Contains batteries: No
-
Cv value [gal/min]: 15.2 gal/min
-
Direction: Straightway
-
Equipment: Cap w. wire seal
-
EU RoHS compliance: Yes with exemptions
-
EU RoHS exemption clause: 6(c)
-
Flow direction: Bi-flow
-
Flow direction indicator: Embossed 2-way arrow
-
Fluid Group: 1, 2
-
Ignition source assessment: Yes
-
Inlet connection type: Solder, ODF
-
Inlet size [in]: 1/2 in
-
Kv value [m³/h]: 13.17 m³/h
-
Max. media temp. Oil free [°C]: 80 °C
-
Max. Working Pressure [bar]: 45 bar
-
Oil free refrigerants: R1234ze(E), R134a, R513A, R515B, R516A
-
Outlet connection type: Solder, ODF
-
Outlet size [in]: 1/2 in
-
Parts included: Schrader valve
-
PED category: Art. 4, par. 3
-
Product accessories: BM/GBC valve accessories
-
Refrigerants: R1234yf, R1234ze(E), R134a, R22/R407C, R290, R32, R404A/R507A, R407A, R407F, R407H, R410A, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R513A, R515B, R516A, R600, R600a, R1270
-
SCIP dossier no.: b72d0a73-e1d7-4c65-ab74-70fa0d43af49
-
SCIP dossier product name: GBC V2 with AP
-
Serviceable: BM/GBC valve spare parts
-
Temperature range [°C] [max]: 100 °C
-
Temperature range [°C] [min]: -40 °C
-
Temperature range [°F] [max]: 212 °F
-
Temperature range [°F] [min]: -40 °F
-
UL approved refrigerants: R1234yf, R1234ze(E), R134a, R22, R290, R32, R404A, R407A, R407C, R407F, R407H, R410A, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R516A, R600, R600a
-
UL mark: Yes
-
Max. Working Pressure: 650 psig
