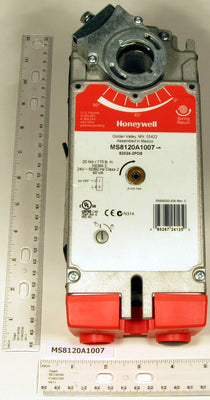

Honeywell MS8120A1007 24v 2 Pos Spring Return Direct Coupled Actuator 175 Lb-in Torque

Product Description

Honeywell MS8120A1007 is a robust 24V 2-position spring return direct coupled actuator designed for precise control in HVAC systems. Its 175 lb-in torque enhances reliability and performance for industrial applications.

• Optimized for spring-return fail-safe operation.
• Direct coupled design reduces backlash.
• Brushless DC submotor with electronic stall protection.

Product Highlights

This actuator is engineered to ensure consistent performance, featuring a spring-return mechanism that ensures fail-safe operation and a compact design that facilitates installation in tight spaces.

Product Information

Standard Information

• Actuator Type: Damper, Valve
• Application Type: HVAC

Technical Specifications

• Control Signal: SPST, 2 Position
• Supply Voltage: 24 Vac +/- 20%
• Manual Operation: Manual Crank
• Mounting: Direct Coupled
• Frequency: 60 Hz, 50 Hz
• Rotational Stroke: 95 degrees +/- 3 degrees
• Spring Return Direction: By orientation
• Dimensions: 9.72 in high x 3.94 in wide x 2.95 in deep
