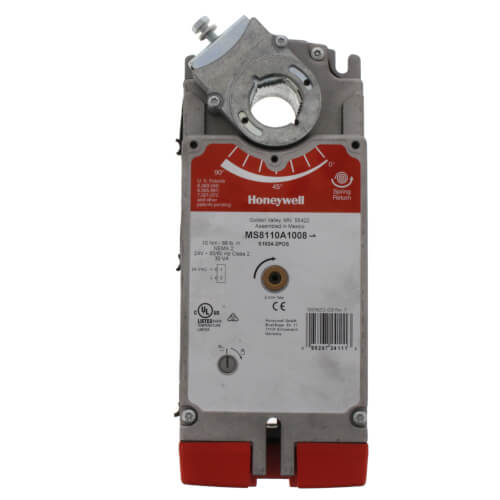

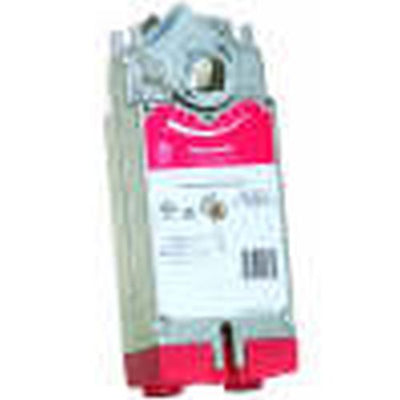

Honeywell MS8110A1008 Electric Actuator, 88 lb-in, 24V

Product Description

The Honeywell MS8110A1008 Electric Actuator is designed to provide reliable damper control in HVAC systems. This actuator offers a spring return feature, allowing it to return to its original position in case of power failure. It operates on 24 volts and delivers a torque of 88 lb-in, making it suitable for various control applications.

• 24V SPDT limit switch
• 88 lb-in torque
• Spring return feature

Product Highlights

The Honeywell MS8110A1008 Electric Actuator is built for industrial and commercial HVAC systems, offering dependable performance in controlling dampers and valves.

Product Information

Standard Information

• Brand: Honeywell
• MPN: MS8110A1008
• Actuator Type: Damper, Valve

Technical Specifications

• Torque: 88 lb-in
• Voltage: 24V
• Control Signal: SPST, 2 Position
• Fail Safe Mode: Spring Return
• Shaft Adapter Type: Self-Centering Clamping
• Manual Operation: Manual Crank
• Rotational Stroke: 95 +/- 3 degrees
• Dimensions: 9.72 in high x 3.94 in wide x 2.95 in deep
• Ambient Temperature Range: -40 F to 140 F
• Operating Humidity Range: 5 to 95% RH, non-condensing

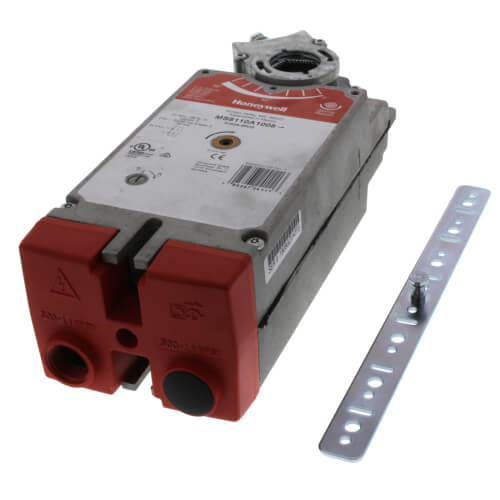

• Includes: Mounting bracket, self-centering shaft adapter, 3mm crank
