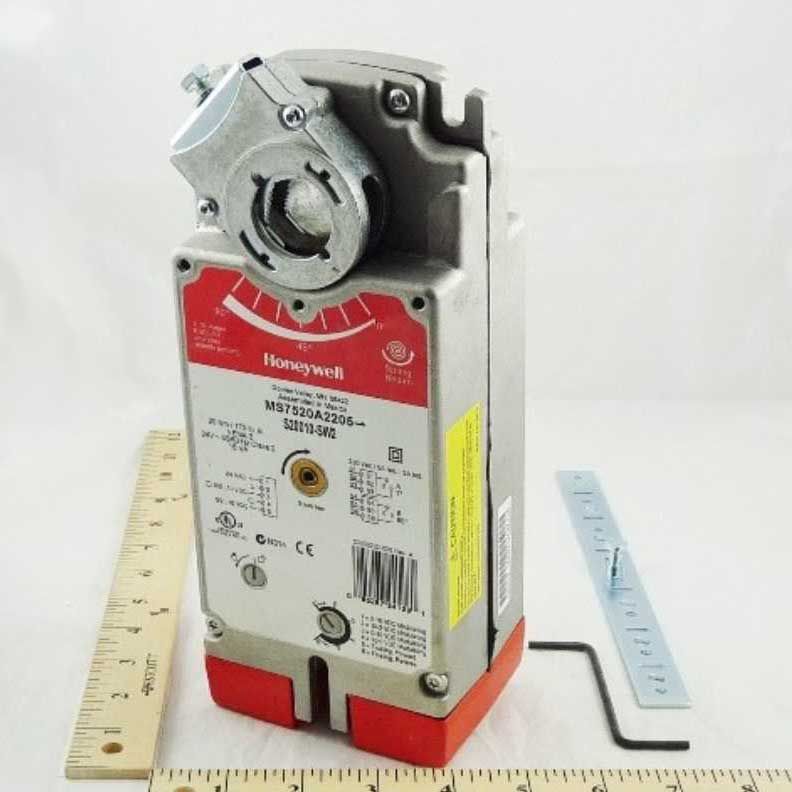

Honeywell MS7520A2205 Damper Actuator 24V SR 175inlb 2SW Flt/Mod0-10

Product Description

The Honeywell MS7520A2205 is a damper actuator with 24V spring return and a torque of 175 in-lb designed for HVAC applications. It supports 2-10 VDC and floating control signals.

• 24V spring return
• 175 in-lb torque
• Suited for HVAC systems

Product Highlights

This actuator is built to provide reliable performance in HVAC systems, ensuring efficient control of air flow. Its rugged design makes it suitable for various industrial environments. Easy installation and maintenance make it ideal for busy trade professionals.

Product Information

Standard Information

• Brand: Honeywell
• MPN: MS7520A2205
• Model: S20

Technical Specifications

• Actuator Type: Damper, Valve
• Control Signal: Floating, (0)2-10 VDC, 4-20 mA with 500 ohm resistor
• Power Supply: 24V AC +/- 20%
• Torque: 175 lb-in
• Spring Return: Yes
• Timing: 20 sec Spring Return, 90 sec Nominal @ 60 Hz
• Operating Temperature: -40 to 140 F
• Dimensions: 9.72 in high x 3.94 in wide x 2.95 in deep
• Shaft Adapter: Self-Centering Clamping
• Electrical Connections: Enclosed Screw Terminal Strip
• Mounting: Direct Coupled
