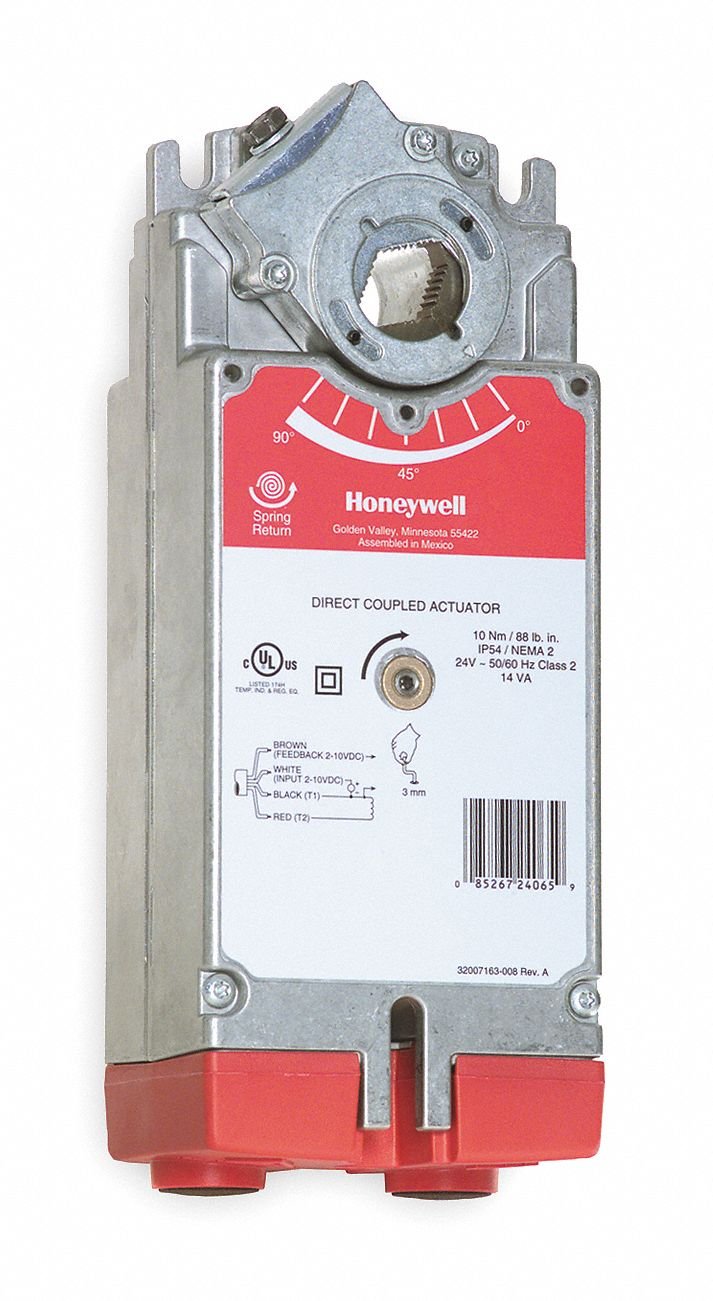

Honeywell MS7510A2206 24V Modulating Direct Coupled Spring Return Damper/Valve Actuator 88 LB-IN Torque With 2 Switches

Product Description

The Honeywell MS7510A2206 is a 24V modulating direct coupled spring return damper/valve actuator designed for precise control in HVAC systems. This actuator provides 88 lb-in torque and ensures efficient operation with its robust features.

• Spring Return Actuator
• Two Integrated Switches
• 88 lb-in Torque

Product Highlights

The Honeywell MS7510A2206 actuator is ideal for controlling HVAC valves and dampers. It includes mounting brackets and auxiliary switches for monitoring and feedback. This rugged actuator performs reliably in extreme conditions.

Product Information

Standard Information

• Brand: Honeywell
• MPN: MS7510A2206

Technical Specifications

• Power Consumption: 14VA
• Voltage: 24V AC/DC
• Torque: 88 lb-in
• Spring Return: Yes
• Control Signal: Floating, On/Off
• Electrical Connections: Enclosed Screw Terminal Strip
• Ambient Temp Range: -40 to 140 degrees F
• Dimensions: 9.75 in height, 3.94 in width, 2.95 in depth
• Includes: Two internal auxiliary switches, mounting bracket
• Shaft Type: Self-Centering Clamping
