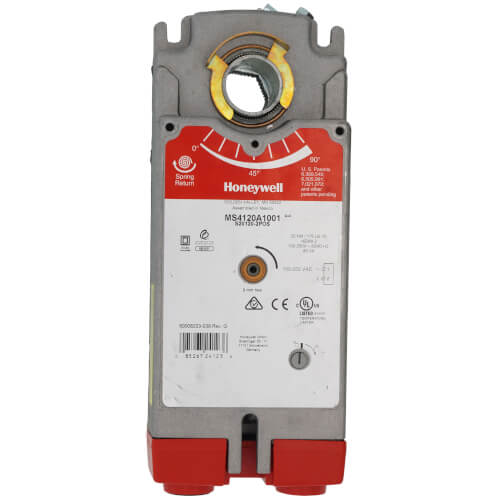

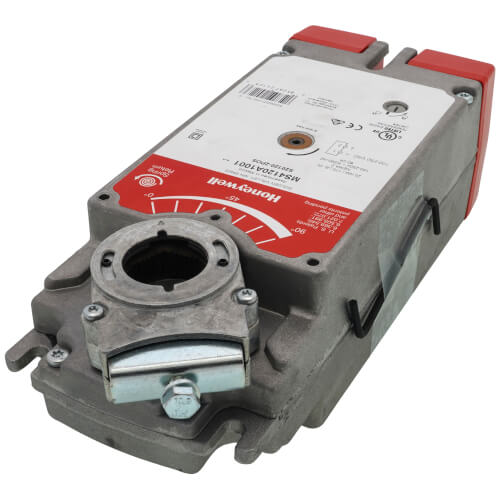

Honeywell MS4120A1001 Electric Actuator 100-240V -40 to 140F Spring Return

Product Description

The Honeywell MS4120A1001 Electric Actuator is designed for use in HVAC systems. This actuator features a 100-240V power supply and can operate effectively in temperatures ranging from -40 to 140 degrees Fahrenheit. The actuator's spring return mechanism ensures fail-safe operation in various applications. It is built to handle a 175 in-lb torque, making it suitable for controlling dampers and valves in harsh environments.

• 100-240V power supply
• Spring return mechanism
• Operates in -40 to 140 degrees Fahrenheit

Product Highlights

This Honeywell actuator is ideal for HVAC applications that require reliable fail-safe operation. Its robust construction makes it suitable for industrial settings, ensuring consistent performance even under demanding conditions.

Product Information

Standard Information

• Brand: Honeywell
• MPN: MS4120A1001

Technical Specifications

• Actuator Type: Damper, Valve
• Fail Safe Mode: Spring Return
• Voltage: 100-240V AC
• Torque: 175 in-lb
• Operating Temperature Range: -40 to 140 degrees Fahrenheit
• Dimensions: 9.72 in high x 3.94 in wide x 2.95 in deep
• Control Signal: 2 position, SPST
• Mounting: Direct Coupled
• Includes: 3mm Crank, Mounting Bracket, Self-Centering Shaft Adapter
