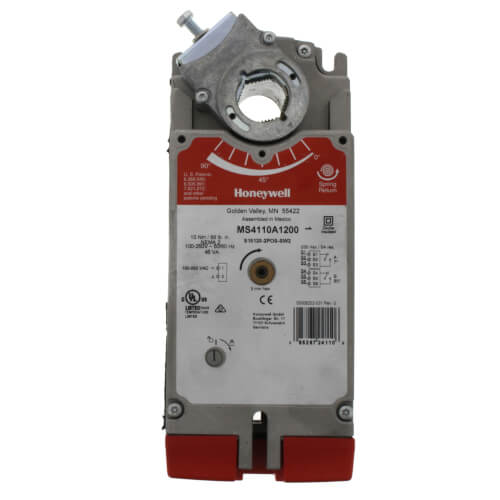

Honeywell MS4110A1200 Electric Actuator 100-240V for Valves and Dampers

Product Description

The Honeywell MS4110A1200 electric actuator operates at a voltage of 100-240V and is designed for demanding industrial applications. This two-position, spring return direct coupled damper/valve actuator provides reliable control of dampers and valves with 88 lb-in torque.

• Reliable control of dampers and valves
• Two internal auxiliary switches for position feedback
• Constructed with durable materials for longevity

Product Highlights

Honeywell MS4110A1200 offers precise control, durability, and resistance against harsh conditions. Ideal for HVAC systems, industrial ventilation, and air handling systems.

Product Information

Standard Information

• Brand: Honeywell
• MPN: MS4110A1200

Technical Specifications

• Type: Electric Actuator
• Shaft Type: Self-Centering Clamping
• Torque: 88 in-lb
• Voltage: 100-240V
• Includes: 2 Internal Auxiliary Switches, 3mm Crank, Mounting Bracket
• Signal Type: On/Off
• Stroke Degree: 95 +/- 3
• Spring Return: Yes
• Switch Type: 2 SPDT
• Power Consumption: 13VA Holding, 45VA Driving
• Ambient Temperature Range: -40 to 140 degrees F
• Dimensions: 9.75 in x 3.94 in x 2.95 in
• Weight: 7.46 lbs
